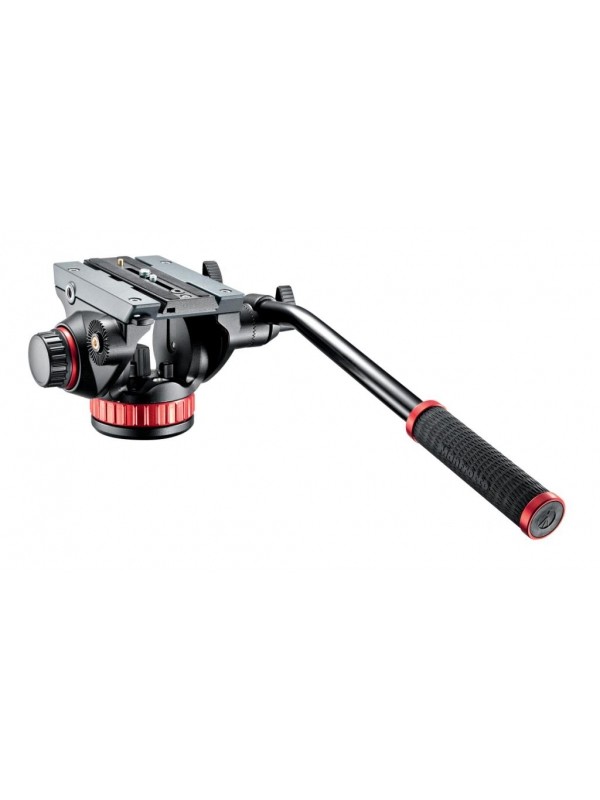

The Manfrotto 502 Fluid Video Head with flat base features variable fluid drag system for pan and tilt movements that's cleverly incorporated into the design.
It's ideal for the latest camcorder and HDSLR cameras supplied with external accessories. It has a maximum capacity of 7kg and features a Ø75mm half ball connection to ensure compatibility with most equipment today.
This video head also has a fixed counterbalance system of 4 Kg Last but not least, 3/8'' Easy Link attachment points allow an external monitor or other accessory equipment to be fitted.
Weight1.691 kg
Safety Payload UNI/PdR 105:202110 kg
Counterbalance SystemFixed
Counterbalance Weight4 kg
Base Diameter75 mm
MaterialAluminium
Bubble Spirit Level (No.)1
Center of gravity55 mm
Safety Payload Weight6 kg
Powered by (batteries)0
CertificationsNone
Top Attachment1/4″ screw, 3/8″ screw attachmenttype
ColourBlack
Easy LinkYes
Front Tilt-80° / +90° tiltrange
Ball FlatFlat
Head TypeVideo/Fluid Head
Maximum Working Temperature60 °C
Minimum Working Temperature-20 °C
Pan Bar IncludedYes
Pan Dragcontinuously adjustable from 0 to max level
Panoramic Rotation360 °
Plate Type504PLONG
Quick ReleaseYes
Tilt Dragcontinuously adjustable from 0 to max level
Working Height13 cm
Accessory CompatibilityMVAPANBARM; MVAPANBARL; 502HLV; 509HLV; 520BALL, 520BALLSH
