EXCLUSIVE of Camera, Battery & Matte Box Sunshade



• Flycam 6000
• 7000 Reverse Arm
• DV Operator vest
• LCD moniter
• Low mode cage
• Tripod Stand
• Docking Bracket

Once considered a luxury and now a must have production tool, our PROAIM camera stabilizing systems provide directors and operators creative opportunities unheard of just a few years ago. Mirroring the advancements in DSLR\'s and pro camcorders, our design and engineering teams went to work to create an all-new sophisticated platform for image capture. The results of their effort, has made our 7000 Reverse Arm Vest Flycam 6000 Kit an instant success. Add a price point of under $1,500 usd and it is easy to see why we get so many rave reviews. When it comes to quality - design and engineering come to us.

Our stabilization system works by isolating the user\'s body motion from the camera, while the camera is balanced in a relatively inert and isolated state. We use the title Magic Arm FM to describe the Front Mounting system whereby the Arm distributes the rig weight over your body providing hours of fatigue free shooting.

• Fully adjustable Universal Head for precision balance.
• Highly sophisticated gimbaled mechanism prevents angular deviation when shooting.
• Adjustable broad weight plate on steel rails allows heavier camera balance.
• Ball tilt head for LCD monitor mounting.
• Quick release plate for easy camera mount and removal.
• Brick Battery mount provided.
• Wheelbarrow bearing gives rotational control on camera axis.

UNIVERSAL CAMERA MOUNT PLATE The Camera Base plate has both 1/4\" and 3/8\" mounting slots (holes) to accommodate a variety of camera bases. Adjustments are easy to perform for bothhorizontal and vertical axis by means of thumbscrews. BALANCING SECTION The base of the stabilizing system is constructed of heavy aluminum with steel rods that support the balancing weights. Aluminum weight plates sit on stainless steel and are housed in weight cups which are screwed onto the aluminum weight plates, all designed to fine tune adjustments to balance your camera. The stalk is capable of mounting a LCD monitor on either side of the Flycam 6000. GIMBAL A Wheelbarrow bearing provides Rotational camera controlallowing easy axis rotation. You can easily move whole steadicam up and down the stalk when using the angle bracket for adjustment.

• Hand adjustable by use of the control knob, once set, guarantees precise behaviour regardless of the weight carried up to 20lbs.
• Isolates body movement from the camera and lens
• Double section articulated arm constructed of black anodized Hi-grade aluminum with adjustable High Tension spring.
• PROAIM – 7000 Reverse Arm has a lifting range of 25” with a tool free ‘one touch’ lift adjustment for each section
• Easy set up for High, Normal and Low angle shots
• Boom Range of 25”
• Arm mount can be made to either front right or front left side of the vest for convenience

Arm Adjustment knob, arm can be adjusted upto 25\" from head to waist	Fine adjustable joint with precision bearings

• Lightweight and fully custom fit with 8 adjustable straps
• Shoulder, chest and hip pads, made from ultra light ventilating, breathable fabric for cool comfort.

LEFT AND RIGHT SIDE ARM MOUNTING The arm can be attached to either the right or left side of the vest depending upon the operator\'s preference. It also has the capability for further adjustment within the mount. CHEST PLATE Constructed from aluminum for strength and lightweight and covered with an anodized black coating. Stainless Steel screws are used to lock the chest plate. ADJUSTABLE BODY VEST To custom fit the vest to different operator body types, there are two adjusting knobs that allow for vertical fine-tuning. Once adjusted properly for a comfort fit, you can set it and forget it.

EXCLUSIVE of Camera and Mattebox

LOW MODE CAMERA CAGE Our Low Mode Camera Cage is meant for taking extreme/medium low angle shots with the stabilization system. It has a Tilting Adjustment to accommodate creative framing. EXCLUSIVE of Camera and Mattebox

The LCD provided in the Combo Only has AVI Port. ( The PRO-LCD-003 does not has hdmi port)

• Male RCA jacks for a direct connection to your camera without adapters!
• 16:9 or 4:3 Adjustable Display widescreen
• Compatible with most Digital SLR and HD DV Cameras including Sony, Nikon,
• Canon, Panasonic, JVC....
• Headphone jack
• High output stereo speakers
• Full functional Remote control
• NTSC & PAL Compatible
• Battery attachment on back of LCD itself
• LCD stand for tabletop mounting
• 360 degree swivel mount
• Antenna Mounting
• Attaches to camera\'s accessory shoe
• On-board AV input
• Chargeable Battery of 2300 mAh
• Video System : PAL/SECAM/NTSC
• Sound System : BG/DK/I/M/N
• Screen : Color TFT LCD
• Screen Size: 7 inches
• Audio Output: 1W (MAX)

Back lightdevice: LED & high brightness cold cathode fuorescent tube.

1, RF IN JACK
2, HEADPHONE JACK
3, AV IN JACK
4, DC 7.2V IN JACK

1, AC DC Adapter
2, 7.2V Li-ion

This LCD is Non-HDMI and will not work with HD cameras which only have hdmi connection. You can use this LCD with your camera with the help of HDMI TO 3-RCA AV AUDIO VIDEO COMPONENT CONVERT CABLE.(Which is not included in this kit)

When you use this kit, you come to know how useful this kit for your videos...

COLLAPSABLE TRIPOD STAND Easily portable, for transportation, the legs of the tripod stand when folded can be stored in a little space. Durable, long life construction and traditional rise, it is perfect for the professional / amateur videographer or the consumer who is looking for a high quality tripod. After the pack up, fold the stands up flat for easy transport and convenient storage. DOCKING BRACKET Made of black anodized aluminum, the docking bracket is solid enough to easily hold the weight of your Stabilization system.

STORAGE CASES Foam lined, custom fit, protective storage cases with easy tote handles.

EXCLUSIVE of Camera, battery & matte box

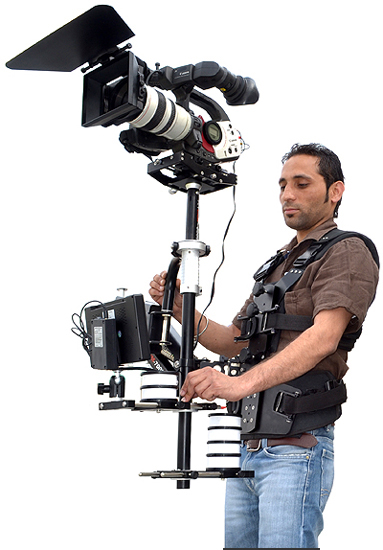

used for DEMONSTRATION purposes only
