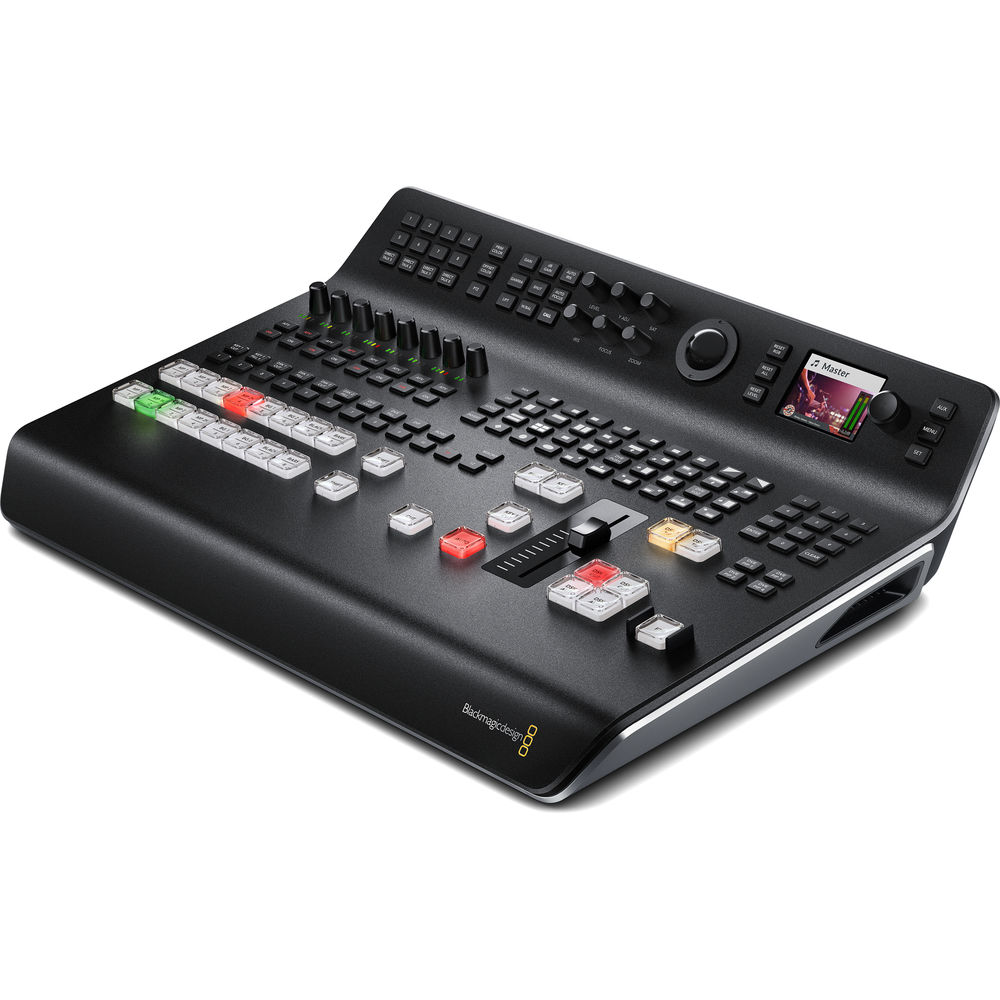

Blackmagic Design ATEM Television Studio Pro HD
| Proizvođač: | Blackmagic Design |
| Šifra Proizvoda: | 7957 |
8-Channel SDI/HDMI Switcher
NTSC/PAL, HD, Computer Signal Compatible
10-Channel Digital Audio Mixer
Built-In Front Panel Controls
Multiview Output Through HDMI and SDI
Upstream and Downstream Keyers
DVE for Transitions and Keyers
Media Players
RSD 293.764,80
Blackmagic Design ATEM Specs
I/O
| Inputs | 4 x 3G/HD/SD-SDI, BNC 4 x HDMI Type A 2 x 3-pin XLR, analog audio 1 x BNC, reference 1 x 1/4" (front panel), microphone |
| Outputs | 4 x SDI BNC, talkback PGM 1 x BNC, program out 1 x BNC, AUX 1 x HDMI Type A, multiview |
| Other | 1 x D-Sub 9, RS-422 1 x RJ45, Ethernet 1 x USB 2.0 Type-B 1 X IEC C13, power 1 X 4-pin XLR, power |
Standards
| Format Support | 1080p: 59.94/50/29.97/25/24/23.98 1080i: 59.94/50 720p: 59.94/50 NTSC/525i: 4:3/16:9 PAL/625i: 4:3/16:9 HDMI Resolutions for Computers 1080p: 59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 59.94/50 720 x 480i: 59.94 Hz 720 x 576: 50 Hz |
| SDI Compliance | SMPTE 259M, 292M, 424M |
| Video Sampling | 4:2:2, 10-bit |
| Color Precision | 4:2:2, 10-bit |
| Color Space | 4:2:2 YUV |
| Color Space Conversion | Hardware-based real time |
| Processing Delay | 6 lines |
General
| Audio Mixer | 10-input x 2-channel mixer |
| Keyers | Upstream: 1 Downstream: 2 Chroma: 1 Linear/Luma: 3 Transition (Stinger/DVE): 1 |
| Layers | Up to 5 |
| Generators | Pattern: 2 Color: 2 |
| DVE | Border and Drop Shadow: 1 |
| Interface | Requires monitor resolution of 1366 x 768 or greater |
| Number of Windows | 10 |
| Routable Windows | 8 x Routable 2 x Fixed, for program and preview |
| Tally | Red for program, green for preview Tally output supported via Ethernet connection to separately available GPI and Tally Interface products |
| Operating System Support | Apple macOS 10.10, 10.11, or newer Windows 8.1 or 10 |
| Power Supply | 110-240 VAC (internal) |
| Power Draw | 40 W |
| Environmental | Operating: 41 to 104°F / 5 to 40°C Storage: -4 to 140°F / -20 to 60°C Relative Humidity: 0 to 90% non-condensing |
| Dimensions | 16.65 x 11.89" / 42.29 x 30.20 cm |
| Weight | 9.3 lb / 4.2 kg |
