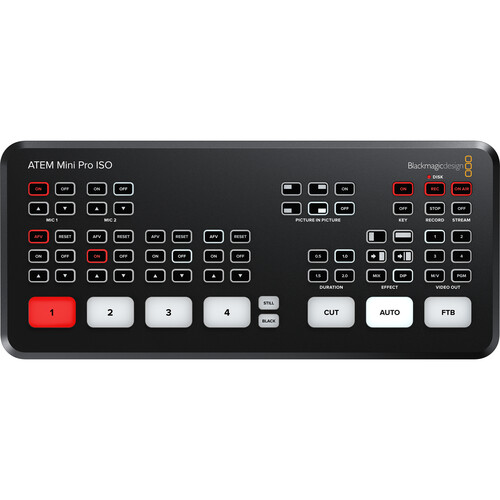

Blackmagic Design ATEM Mini Pro ISO
| Proizvođač: | Blackmagic Design |
| Pozovite nas za najbolju cenu i azurnu informaciju o stanju. | |
| Šifra Proizvoda: | 7958 |
4-Channel Live Stream HDMI Switcher
Program and 4 x Input ISO Recording
Generates DaVinci Resolve Project
Live Tally, Stream, and Record Status
Record Button, Channel Preview Multiview
2-Channel Digital Audio Mixer per Source
HDMI Output, Ethernet ATEM Control
Media Player, Computer Input Support
Upstream and Downstream Keyers
DVE Transition, Chroma/Luma Keyers
€ 635,00
Blackmagic Design ATEM Mini Pro Specs
Mix Effects
| Available M/E Layers | 5 M/E |
| Effect Types | 1 x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key |
| Downstream Keys | 1 x Chroma, DVE 2 x Luma |
| Generators | 1 x Pattern 2 x Color |
| Audio Mixing | 2-Channel Mixing |
Processing
| Switching Type | Pushbutton |
| Color Processing | 10-Bit 4:2:2 YUV |
Input
| Number of Video Input Sources | 4 |
| Video Input Connectors | 4 x HDMI Female |
| Input Video Format | HDMI (10-Bit 4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps |
| Audio Input Connectors | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
Output
| Video Output Channels | 1 |
| Video Output Connectors | 1 x HDMI |
| Output Video Format | HDMI / RJ45 (10-Bit 4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps |
| Embedded Audio Output | HDMI: 2-Channel (per Output) |
| Multiview Output | Yes |
| Monitor Output | 1 x HDMI |
Connectivity
| Other I/O | 1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output 1 x USB Type-C Firmware, Control Input/Output |
IP Encoding/Decoding
| IP Video | H.264: 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding |
| Transport Protocols | RTMP |
| Simultaneous Streams | 1 Streams |
Hardware
| OS Compatibility | macOS 10.14 or Later Windows 10 |
Power
|
Power Connector |
1 x Barrel (12 VDC) Input |
| Power Consumption | 36 W |
Environmental
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
