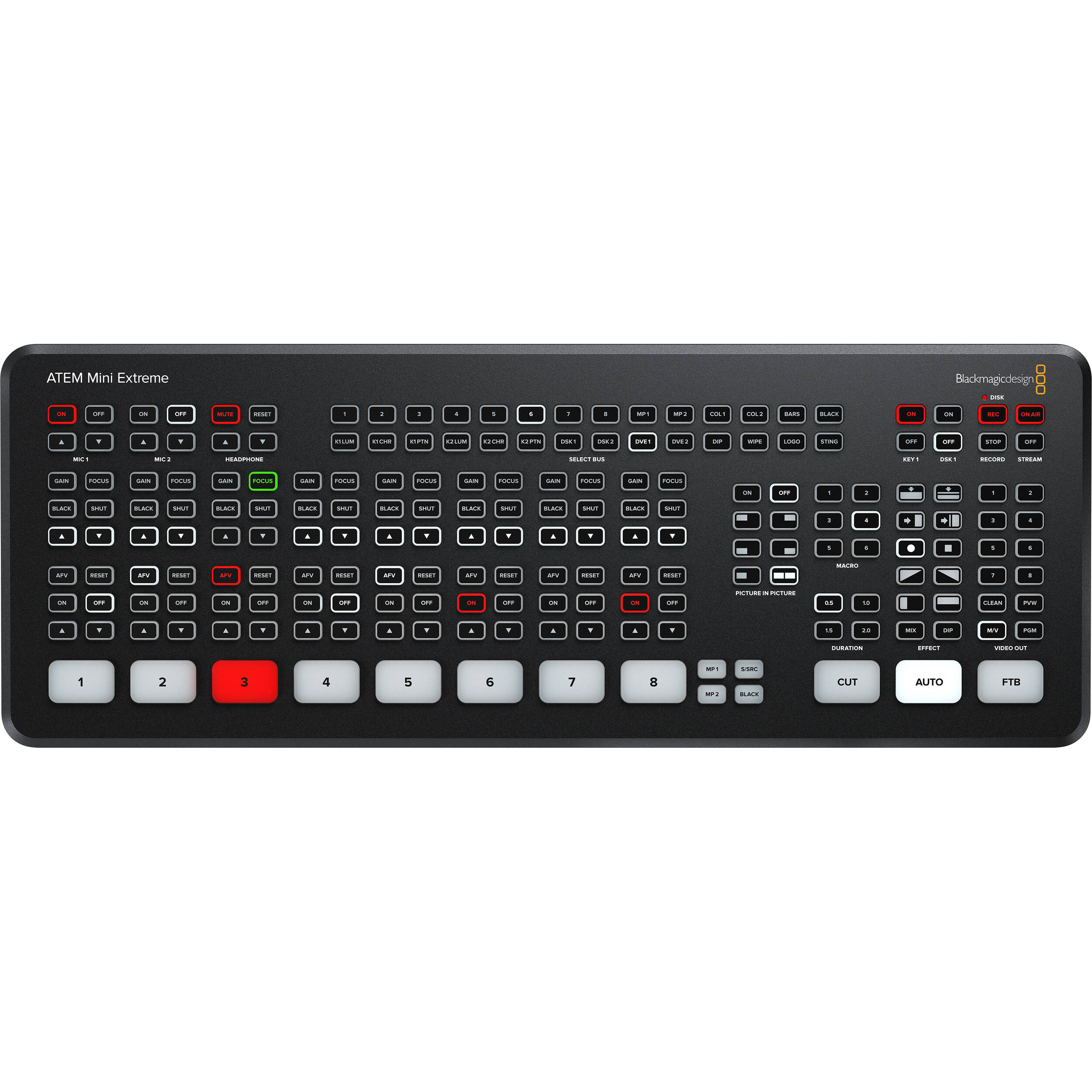

Blackmagic Design ATEM Mini Extreme

Proizvođač: Blackmagic Design
Pozovite nas za najbolju cenu i azurnu informaciju o stanju.
Šifra Proizvoda: 8617

€ 1.425,00

  • 8-Channel HDMI Live Streaming Switcher
  • Supports up to 1080p60
  • RTMP Streaming via Ethernet or USB-C
  • Record Program Out
  • 11-Input, 2-Channel Audio Mixer
  • Input Frame Rate and Format Converter
  • Re-Sync on All HDMI Inputs
  • HD Multiview Output with up to 16 Views
  • Local and Software Switching
  • 4 x Upstream, 2 x Downstream Keyers





Available M/E Layers
9 M/E
Effect Types
2 x DVE
4 x Luma Key
4 x Chroma Key
Graphics Memory
20 Images
Downstream Keys
2 x Chroma, Luma, DVE
Generators
5 x Pattern
2 x Color
Audio Mixing
2-Channel Mixing

Processing

Switching Type
Pushbutton, Software
Processing Resolution
1080p

Input

Number of Video Input Sources
8
Video Inputs
8 x HDMI
Input Video Format
HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Audio Inputs
2 x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format
Analog
Embedded Audio Input
HDMI: 2-Channel (per Input)

Output

Video Output Channels
2
Video Outputs
2 x HDMI
Output Video Format
HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Outputs
1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female
Embedded Audio Output
HDMI: 2-Channel
Multiview Output
16-Way Multiview via HDMI

Connectivity

Other I/O
1 x RJ45
2 x USB-C
HDCP Support
No
IP Video
H.264:
1920 x 1080 Encoding
Transport Protocols
RTMP
Simultaneous Streams
1 Streams
Recording Modes
1920 x 1080p up to 60 fps (MP4)

Hardware

OS Compatibility
macOS 10.15
macOS 11.1 or Later
Windows 10
*As of February, 2021: Check with manufacturer for the most up-to-date compatibility
Processor
Not Specified by Manufacturer
Wi-Fi
No
Bluetooth
No
Power I/O
1 x Barrel (12 VDC) Input
Power Consumption
Device: 36 W

Environmental

Operating Temperature
41 to 104°F / 5 to 40°C
Storage Temperature
14 to 140°F / -10 to 60°C
Operating Humidity
0 to 70%

General

Dimensions
14.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.96 cm
Weight
2.72 lb / 1.23 kg
