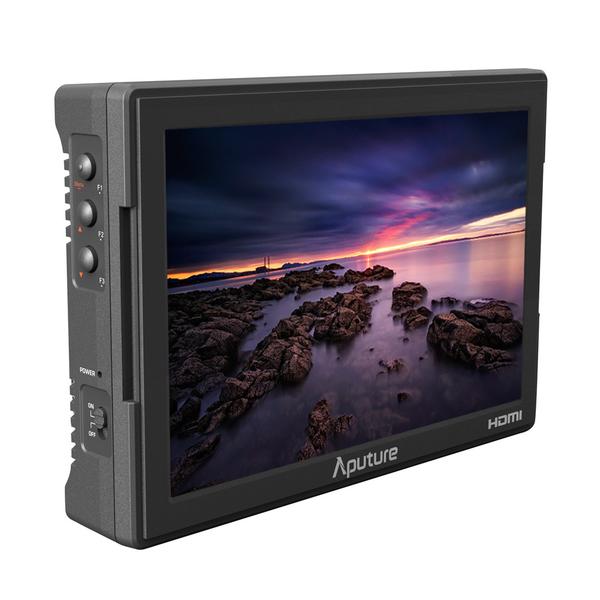

Aputure VS-5X monitor 7´´


Proizvođač: Aputure
Pozovite nas za najbolju cenu i azurnu informaciju o stanju.
Šifra Proizvoda: 6830

Slično ostatku Aputure FineHD linije monitora, VS-5X se može pohvaliti ekranom rezolucije 1920 x 1200 . Ugao gledanja od 160° olakšava pregled iz svih uglova. Dodatni prostor za indikatore, prečice, signalne ulaze i informacije o bateriji ispod 7-inčnog ekrana omogućava da se sve vidi bez preklapanja ili ometanja vaše slike.


Pozovite nas

The VS-5X is a 7

The VS-5X is a 7

Share the Vision

1920 x 1200
Beyond High-Definition

Similar to the rest of the Aputure FineHD line of monitors,
the VS-5X boasts a 1920 x 1200 resolution display, making
every pixel of your image clear and crisp. The 160-degree
viewing angle makes it easy to see from all angles and the
additional monitor space under the 7-inch display allows
for indicators, shortcuts, signal inputs and battery info to
be seen without overlapping or interfering with your picture.



3D LUT Support

The VS-5X now supports LUTs and includes 4 built-in LUTs
already, with the ability to load up to 8 more via USB. This
will allow cinematographers shooting in LOG to optimize
their workflow all the way through post-production.



Log

LUT

False Color Upgrade

The VS-5X has an upgraded false color mode,
giving you the option to fine
tune your skin tones and give you the perfect exposure.
Furthermore, you can adjust the opacity of the false color
overlay on your monitor and adjust based on your needs.

0%
25%
50%
75%
100%


False Color Upgrade

HD-SDI/HDMI
input and output

The VS-5X HDMI/HD-SDI input preserves the quality of your
footage and reliably transfers a real-time HD signal to your
monitor. The SDI allows for precision image display for your
video village. An upgrade from the VS-5, HDMI/HD-SDI outputs
are finally a part of the Aputure family. In addition, the VS-5X
supports cross conversion from HDMI to HD-SDI and vice-versa.

HD-SDI/HDMI input and output

RGB Waveform-Professional
Color Monitoring

RGB waveform is the newest addition to the V-Screen's list
of visual optimization functions, including two methods of
displaying the data of your image: RGB parade and RGB
overlay. Whatever method you choose, waveforms can
help you accurately find the pixel-to-pixel color values of
your image. This makes it easier to calibrate your image’s
white balance, ensuring the highest quality control possible.



RGB Histogram, Monitor
Multiple Scopes at once

To better monitor your color space, the VS-5X also offers
the option of an RGB Histogram. You can simultaneously
display your vectorscope, RGB Parade, and RGB Histogram
to help effectively gauge all of the color values of your image
in different perspectives without having to overlap of your main image.

RGB Histogram, Monitor Multiple Scopes at once
Histogram
RGB Histogram, Monitor Multiple Scopes at once
Vectorscope
RGB Histogram, Monitor Multiple Scopes at once
Waveform

Three Methods of
Supplying Power

Similar to the VS-5, the VS-5X has adopted a new dual battery
system that can eject or mount batteries with the press of a
button. Though it includes two slots, the VS-5X can be
powered by a single battery as well. A separate optional
DC 2.5mm adapter or V/A mount batteries with an included
D-tap cable can also power the VS-5X.

Three Methods of Supplying Power

Exposure, Focus,
Sound Monitoring
and SDI timecode

Besides monitoring color, the VS-5X also has the ability to
display Zebras, False Color, Peaking, a Volume Bar, and
SDI timecode functions that can be used to better monitor
your production workflow.



Fully-Enclosed Sun
Hood, Eliminate
Reflections and Glare

Eliminate reflections and glares with a completely
sealed sun hood with light-absorbing fabric. The
Sun Hood is the ultimate tool for shooting outdoors
to help ensure you are always able to see your
display clearly.

Fully-Enclosed Sun Hood, Eliminate Reflections and Glare

All-In-One Packaging, Everything
You Need, Ready To Go

Similar to the VS-5, the VS-5X comes with its own flexible and mobile bag.
The mesh fabric protects the unit from scratches and its slim design
ensures portability. The VS-5X is truly an all-in-one solution to start your
professional monitoring experience.

All-In-One Packaging, Everything You Need, Ready To Go

Display
  • Reslotion

    1920*1200

  • Brightness

    450 cd/m2

  • Contrast Ratio

    1200:1

  • Viewing Angle

    160 / 160(H/V)

  • Pixel Pitch

    0.07875 x 0.07875 mm


Features
  • Full Info. Mode
    Timecode
    3D Lut Support
    Waveform
    Vectorscope
    Co-Zebra
    Peak
    False Color
    RGB Histogram
    Monochrome
    Volume Bar
    Center Mark
    Safe Area
    Flip
    Color Temp
    Low Battery Alert
    Shortcut


Performance
  • Input and Output Connectors

    Input: HD-SDI and HDMI
    Output: 3.5 mm headphone audio jack

  • Batteries

    Sony NP-F/FM/QM Series:
    F550 / F570 / F770 / F960 / F970 / FM50 / FM51 / FM55H / FM500H / QM50 / QM51 / QM71D / QM91D

  • Power Requirements

    12 V, 700 mA

  • Power Voltage

    DC 7 to 18v

  • Power Consumption

    ≤9 W

  • Operation Temperature

    0℃~55℃

  • Storage Temperature

    0℃~70℃

  • Humidity

    30%~70%


Dimension and Fixture
  • Dimension

    7.1 x 4.8 x 1.4" (180 x 122 x 35 mm)

  • Weight

    486g

  • Fixture

    • 1
      Screen
    • 2
      Menu / F1
    • 3
      Navigator / F2
    • 4
      Navigator / F2
    • 5
      Power Indicator
    • 6
      Power switch
    • 7
      Battery Holder
    • 8
      Battery Lock
    • 9
      Battery Input
    • 10
      SDI-IN
    • 11
      HDMI-IN
    • 12
      1/4" Thread
    • 13
      HDMI-OUT
    • 14
      SDI-OUT
    • 15
      Earphone Jack
    • 16
      USB Input
