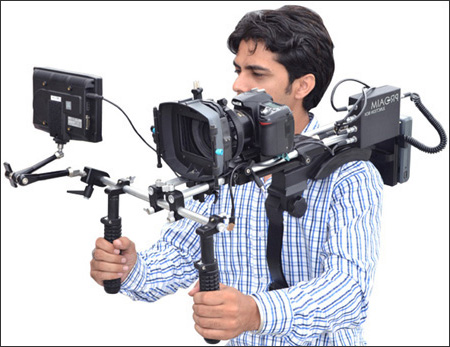

This PROAIM SHOULDER RIG 2100 COMBO makes your camera setup complete to work independently and delivers excellent results without any jerk problems. It eliminates fatigue. We have provided JUNCTION BOX in this new shoulder rig kit with V-mount 15mm Battery plate so that it can provide required power supply from the battery to the different of camera setup for example to LCD, MIC & camera.
This Shoulder Rig is new invension in the rigs line. It features adjustable Shoulder Rig with Counter-balance of Battery system , Follow focus V2 with accessories and wide angle mattebox with 16:9 & 4:3 aspect ratio

• Shoulder Rig 700
• Junction Box & V-Mount Battery Plate
• V2 Follow Focus with Gear Rings Whip & Speed Crank
• MB-500 Wide Angle Matte Box
• Wire Organiser Clamp
• Screw Tightening key
• Pro Zoom
• LCD Arm with 15mm Clamp

COMPLIMENTARY ITEMS

SHOULDER RIG 700

• 1x 15mm Shoulder Mount with 15mm Clamp
• 1x RS Camera mounting base with quick release system
• 2x 15mm Junction Rod Adapters
• 2x 15mm Telescopic Handles
• 3pc x of 15mm silver alluminum rods 300mm long with female thread
• 2pc x of 15mm silver alluminum rods 300mm long with male threads
• 1pc x 15mm silver alluminum rods 100mm long with male threads
• V-mount Battery plate
• Junction box


• JUNCTION BOX has 2 pin lemo output for 2 connections & 3pin lemo output 2 connection.
• V-MOUNT PLATE is campatible with 15mm rods.
• V-MOUNT PLATE has B-Tap 2 Pin DC out.
• Perfect circuit protection inside: Supply the protection for overvoltage, undervoltage, overcurrent, external circuit short and unbalance in unconventional situation.

• Right and left side drive gear fitting
• Gears in the gearbox made of metal
• Gear driven design for slip-free, accurate movement.
• Adjustable slide mounting mechanism to fit any lens diameter
• Adjustable locking system
• Mounts onto 15 mm Rod Support -60mm center to center
• Positional indicator.
• Standard accessory port
• Allows extreme focus lenses to be geared and used with follow focus industry standard 0.8 module.
• Fits most lenses with proper focus gear drive (Interchangeable gear drives (currently shipping 0.8/2.51mm pitch)

• Gear Arm adjustable range 35 mm
• Follow Focus - Black anodized Aluminum, Gears - ABS
• Dial Index Adjustment- 360 degrees
• Dial 'OD'- 84mm (of white wheel)
• Fit Rail Dia - 15 mm
• Fit Rail Distance - 60 mm
• Dimensions -75mm 110mm 110mm
• Exchangeable
• Gear Drive for Fujinon/Canon/Kinor Gear Wt- .006gms1.32lbs begin_of_the_skype_highlighting 006gms1.32lbs FREE end_of_the_skype_highlighting
• Follow Focus Wt.- 310 gms/0.68lbs
• Wt with packing -1.5Kgs/3.30lbs
• Gear Dia- 35.87mm

FOLLOW FOCUS ACCESSORIES     PRO ZOOM: The Pro Zoom allows the operator to pull zoom from the side of the camera, similar to how a follow focus enables focus pulls from the side. Like other Follow Focus products. FEATURES: Single rail, all aluminum, 15mm rod mount Smooth, silent motion Bright white marking disc Adjustable slide mounting mechanism Thumbscrew for secure rail attachment Drive gear is Industry standard 32 pitch (0.8 module) Pro ZOOM Works with Proaim as well as other standard lens gears Metal construction except for drive gear and knob Flexible design of gear rings Various gear ring attachments Provides precision control over complete zoom range Gear ring allows external focusing lenses to be geared and used with a Zoom/ follow focus Industry-standard 0.8 module. SPECIFICATIONS: Pro Zoom attaches to any 15mm rod Quality metal rotation lever Drive gear dia -40mm Drive gear 0.8 module Zoom gear rings 0.8 module   WIRE ORGANIZER CLAMPS: MA-2 LCD ARM WITH 15MM MOUNTING ADAPTER MATTE BOX-500 Matte box Comes with Side flags which provide extra flare reduction The weight of the matte box itself is 1 pounds Central bracket with quick lock mechanism is used to attach the rods to the matte box This Mattebox has two 4"x4" filter holders. Perfect for polarizes and combination of square filters Mattebox /filterholder features a non-reflective rectangular shade that allows for single or dual filter applications. Mattebox attaches to the cameras in such a way that only a soft foam cushioned lens ring (DONUT) contacts lens barrel, so you don't have to worry about your lens during the bumps and grinds of capturing exciting footage. Kit includes five donut with inner diameter 81mm, 78mm, 75mm, 65mm, 54mm.

Foam lined, custom fit, protective storage case with easy tote handles
