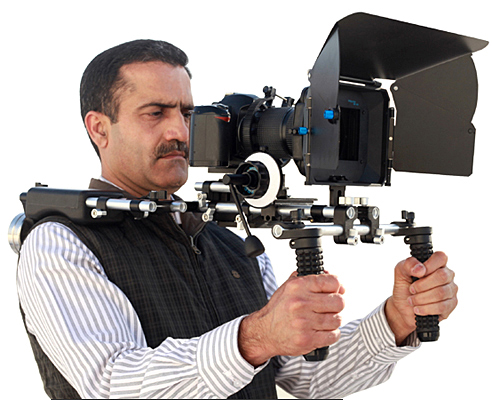

Our PROAIM DSLR Kit-11 is a perfect match for today's lightweight DSLR's and Camcorders. Beyond the accessory capability for follow focus, matte box, this package includes a camera stability platform that is the envy of so many others because it works so well. Live events like weddings, pro sports, corporate communications and even ENG applications, demand top-notch, reliable, quality equipment, because there are no 'Take 2' opportunities. The term 'Good to Go' could have been written to best describe our Kit-11 for shooters on the move.

• DSLR Rig-120
• V1 Follow focus
• MB-600 Mattebox
• 15" whip, Gear Set 55-110mm & Speed Crank.
• Wire Organizer Clamp
• Screw Tightening key
• Pro Zoom

COMPLIMENTARY ITEMS

• The Whole Rig can be mounted on the Tripod with the help of tripod mounting plate provided with this kit
• The Telescopic handles with rubber gripping gives the complete rest to hands while shooting
• The 15mm Straight Bracket allows the user to use the camera off-center so as to bring the camera on the eye level to use eye-piece.
• There is height riser that allows the camera to adjust at desired height
• The camera mounting plate has horizontal adjustment.
• The 15mm parts of the shoulder mount can be adjusted anywhere on the 15mm rods

TELESCOPIC HANDLE Rig-120 has Adjustable telescopic handle. You can adjust the handle as per your requirement. Handles comes with soft Grip which are easy to hold while shooting. It makes comfortable and easy to take different shots. Telescopic Handle has 15mm industrial standard size which can be used with 15mm rails.

JUNCTION ADAPTER This adapter can be used to support any 15mm rods. This adapter is made of aluminum black sand anodized. The knobs are made of silver aluminum.

HEIGHT ADJUSTER Height Adjuster helps to adjust height of the camera as per your lans. You can easily adjust it with help of Alen-keys.

CAMERA BASE PLATE This is a Camera Plate with 15mm rod mounting adapter. You can also use further your own 15mm accessories by attaching your 15mm male threaded rods with it.

STRAIGHT BRACKET Rig -120 comes with Straight bracket. This is 15mm Straight Bracket (60mm center-to-center distance) straight bracket is very helpful during off-set use. It is very useful accessory for the DSLR users to bring the camera more closer to the eye. The 15mm Straight Bracket is made of aluminum black sand anodized.

COUNTER WEIGHT This counter weight properly balanced and will help to get stable shots for the long time. This will also eliminate your fatigue while working with shoulder mount for the long time.

PROAIM Mattebox comes with both 4:3 and 16:9 aspect ratios format so it can be used with both normal as well as wide angle lenses. 4:3 and 16:9 ratio mask can easily be attached or removed with four small screws.

The all-metal Front Adjuster with quick lock mechanism attaches the mattebox to the 15mm rods.

TOP FLAG The Matte box has Long top Flag for extra protection from direct light.

SIDE BARN DOORS WITH HEIGHT ADJUSTMENT KNOBS This Matte box lens hood has side barn doors with height adjustment feature so user can adjust the height of the side barn doors as per his requirement..

INTERCHANGEABLE MASKS 15mm Umbrella Matte box comes with both 4:3 and 16:9 aspect ratio format so that this Matte box can be used with both normal as well as wide angle lenses. 4:3 and 16:9 ratio mask can easily be attached or detached with four small screws in the front of the matte box.

FILTER TRAY HOLDERS This Matte box has two 4"x4" filter holders; perfect for polarizes and combination of square filters. Rotating filter holder enables user to reject or install square filter without disturbing microphone or flash settings.

FOAM DONUT RINGS: DONUT Kit includes five donut with inner diameter 81mm, 78mm, 75mm, 65mm and 54mm. The outer Diameter of this matte box is 95mm. 95-77mm Adapter Ring is provided for the Sony PMW-EX1 camera. If you have EX1 camera, kindly leave a note on your order for inclusion of the Adapter ring for Sony PMW-EX1.

• Completely gear driven design for slip-free and accurate movement.
• Adjustable slide mounting mechanism to fit any lens diameter.
• Adjustable locking system.
• Mounts onto 15 mm Rod Support (60mm center to center difference).
• Positional indicator.
• Standard accessory port.
• Allows extreme focusing lenses to be geared and used with industry standard 0.8 module.
• Fits most lenses with proper focus gear drive. Interchangeable gear drives available. (currently shipping 0.8/2.51mm pitch).

SPECIFICATIONS: Gear Arm adjustable distance 55 mm. Construction Follow Focus Aluminum Black Anodized. Dial Index Adjustment 360 degrees. Dial Outside Diameter 75 mm (of white wheel). Fit Rail Diameter 15 mm. Fit Rail Distance 60 mm & 104mm. Dimensions 175(L) 125(H) 110(W). Exchangeable Gear Drive for :Fujinon/Canon/Kinor. Gear Wt. 30 grams. Follow Focus Wt. 290 grams. Wt with packing 2.00 Kgs. Gear Diameter 33 mm.

The Pro Zoom allows the operator to pull zoom from the side of the camera, similar to how a follow focus enables focus pulls from the side. Like other Follow Focus products.

SPECIFICATIONS: Pro Zoom attaches to any 15mm rod Quality metal rotation lever Drive gear dia -40mm Drive gear 0.8 module Zoom gear rings 0.8 module

• Canon : 5d MK II, 7d, gl1, gl2, xm1, xm2, vx2100, vx1000, T2i, 550d, D400, d300, 20d
• Sony : PD150, PD170, A1u, z1u, fx1, z7u, z1E, Z1P
• Nikon : NikonD60, NikonD70, NikonD7000
• JVC : GR-DVL505, GR-DVL300, GRD750U, JY-HD10U, GR-D34E, GRD796, GRD30
• Panasonic : hvx200, dvx100, dvc30
