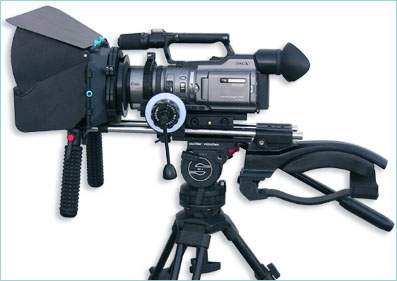

FlyCam PROAIM DSLR KIT-3 Shoulder Mount + matte box+ follow focus Bundle

FlyCam PROAIM DSLR KIT-3 Shoulder Mount + matte box+ follow focus Bundle


Proizvođač: FlyCam PROAIM DSLR KIT-3 Shoulder Mount + matte box+ follow focus Bundle
Dostupnost: Nema na stanju
Pozovite nas za najbolju cenu i azurnu informaciju o stanju.
Šifra Proizvoda: 3446

PROAIM Shoulder Mount + 15mm Rails and Chest Support PROAIM Follow focus with Gear set PROAIM Mattebox with french flag & side flags Whip & Speed Crank


€ 799,00















PROAIM SHOULDER MOUNT WITH FOLLOW FOCUS V1& SUNSHADE

(DSLR KIT-3)

Viewing the need of Canon 5D Mark II, 7D & Nikon D90, Rebel T2I, Panasonic GH2, lumix gh1/gh2 Users, we have specially designed a new complete bundle of PROAIM Shoulder Mount + Follow Focus + Sunshade for DSLR users. This kit meets not only the requirement of DSLR users, but also make them feel very professional and confident to produce a high quality video with this Focusing kit. This PROAIM kit is flexibly designed equipment allowing DSLR users to work independetly and be more precise and efficiently

DSLR KIT-3 INCLUDES :

  • PROAIM Shoulder Mount + 15mm Rails and Chest Support
  • PROAIM Follow focus with Gear set
  • PROAIM Mattebox with french flag & side flags
  • Whip & Speed Crank





View Demo video of DSLR KIT-3







The complete system can easily be mounted on the tripod in a two ways.

just remove the Chest Support and mount the system on the tripod without disturbing the accessories and camera.



Or Attach the system to the Tripod through base plate of Rail System

**GET FREE**

Gear Set in diameters :

  • 55-65mm
  • 65-75mm
  • 75-85mm
  • 85-95mm
  • 90-100mm
  • 100-110mm



FOAM PACKING WITH CARRY CASE



The camera can be mounted on the shoulder mount rail system more closer to the eye or farther from eye as per the user's convenience like the below images.

More closer to eye


Farther from eye


CAMERA IS NOT INCLUDED



PROAIM SHOULDER MOUNT

PROAIM SHOULDER MOUNT makes your kit complete to work independently and delivers excellent results without any jerk problems. It eliminates fatigue. This Shoulder Mount can easily be adapted on Canon 5D Mark II, Nikon D90 or any other camera. The configuration of PROAIM SHOULDER MOUNT is very quick and easy, requires no tool. This is one of the best-designed shoulder mount systems available on the market today.





SPECIFICATION :

  • Construction : All made of aluminum black anodized. stainless steel Rods. Shoulder pad's top part is aluminum and bottom is soft foam.
  • Rail Dia : 15 mm
  • Rail Distance : 60 mm
  • Length of Rails : 450mm (45cm)

FEATURES :

  • You can use the Shoulder Mount Handles with your 19mm Rods also
  • The handles are joined to the rails mounting adapter with gear teath.
  • Rail System has height adjustment. Thus, you can adjust your camera height according to the accessories such as follow focus mattebox etc.

NOTE : Camera mounting adapter shown in this video is different from the camera mounting system in this listing. This video is the demonstration of the stability of the shoulder support



PROAIM QUICK RELEASE AND BASE PLATE

PROAIM Quick Release Plates will fit almost to every camera and will prevent your camera from rotating or moving on the plate. Quick Release Plates are designed to allow access to all cameras controls and functions without removing the plate. Quick release plates are designed to provide maximum contact area to the bottom of the camera increasing stability and helping to minimize flexing of the camera body.The height of the camera can be adjusted by adding the shims

PROAIM Base Plate is designed to support the rail system from the bottom and it can be mounted on the tripod easily.

Height of rail system can be increased by adding shims provided



PROAIM FOLLOW FOCUS V1

PROAIM Follow Focus is specifically designed to work for DV/HDV cameras lenses. PROAIM Follow Focus is flexibly designed light weight equipment allowing a camera operator to work indivertibly and be more precise and efficient. If follow focus is used to simplify and enhance the focusing technique.

As focusing is foremost demand of photography, our PROAIM Follow Focus exactly follows the directions of the focus puller i.e. when and how to adjust the focus on different subjects as well as change the focus during movement of camera on the required subject when the subject is placed at different angle or is not within the center of the frame of camera. The adjustable locking systemattaches directly to 15 mm rods (60 mm center to center difference). 15 mm stainless steel rods feature the same modular design so that one version can fit any camera.

PROAIM Follow Focus is ready for most demanding shots. Obtaining a Follow Focus with full assembly with such control, precision and accuracy at the most affordable price is a blazing revolution in the price trend.



SPECIFICATION :

  • Gear Arm adjustable distance : 55 mm
  • Construction (Follow Focus :-: Aluminum Black Anodized ,Gears Nylon and ABS
  • Dial Index Adjustment : 360o
  • Dial Outside Diameter : 75 mm (of white wheel)
  • Fit Rail Dia : 15 mm
  • Fit Rail Distance : 60 mm Dimensions : 175(L) 125(H) 110(W)
  • Exchangeable Gear Drive for : Fujinon/Canon/Kinor
  • Gear Wt. : 30 gms
  • Follow Focus Wt. : 290 gms
  • Wt with packing : 1.5Kgs
  • Gear Dia : 33 mm

FEATURES :

  • Completely gear driven design for slip-free and accurate movement.
  • Adjustable slide mounting mechanism to fit any lens diameter.
  • Adjustable locking system.
  • Mounts onto 15 mm Rod Support (60mm center to center difference).
  • Positional indicator.
  • Allows extremely focusing lenses to be geared and used with follow focus industry standard 0.8 module.
  • Fits most lenses with proper focus gear drive (Interchangeable gear drives (currently shipping 0.8/2.51mm pitch).

PROAIM MATTE BOX PROAIM™

Mattebox is specially designed for all dv / hdv cameras with normal and wide angle lenses. PROAIM™ Matte Boxes control light better than a regular lens shade and offer the videographer the ability to use high quality 4x4 filters for image effects. This matte box IS easily deattachable. It is light in weight but is made up of strong material

The PROAIM™ sunshade mattebox is a simple and unique in design used to reduce extra sunlight on the lens. It works same the lens hood.

We have available this mattebox with both blue & black color knobs . We may send black or blue color knobs as per the availability of stock.

PROAIM™ Mattebox comes with both 4:3 and 16:9 aspect ratio format so that this mattebox can be used with both normal as well as wide angle lenses. 4:3 and 16:9 ratio mask can easily be attached or diattached with four small screws in the front of the mattebox.

Sunshade/filterholder features a non-reflective retangular shade that allows for single or dual filter applications. This Mattebox has two 4"x4" filter holders; perfect for polarizers and combination of square filters.

Rotating filter holder enables user to eject or instal square filter without disturbing microphone or flash settings.

For better support and safety for your camera, we recommend using a 15 mm rod support with this matte box.You can not use this matte box without rod support.

FRONT ADJUSTER : Front Adjuster attaches mattebox to the 15mm rods. The front adjuster is made of metal. It is designed with quick lock mechanism.

FOAM DONUT RINGS: PROAIM™ Mattebox with rod support attaches to the cameras in such a way that only a soft foam cussioned lens ring (DONUT) contacts lens barrel, so you don't have to worry about your lens during the bumps and grinds of capturing exciting footage. Kit includes five donut with inner diameter 81mm, 78mm, 75mm, 65mm, 54mm. The outer Dia of this matte box is 95mm.



STRIKING FEATURES :

  • Side flags provide extra flare reduction.
  • The weight of the matte box with rod support is 2.18 pounds.
  • Central bracket with quick lock mechanism. It is used for the rods attachment to the matte box.

95-77mm Adapter Ring is provided for Sony PMW-EX1 camera. Kindly leave a note on your order for sending Adapter ring for Sony PMW-EX1

95-77mm Adapter Ring is provided for Sony PMW-EX1 camera. Kindly leave a note on your order for sending Adapter ring for Sony PMW-EX1

We have available this mattebox with both blue & black color knobs . We may send black or blue color knobs as per the availability of stock

The Shoulder can also be used without Chest support



Demo Images
