Neprevazidjen kvalitet stampe.

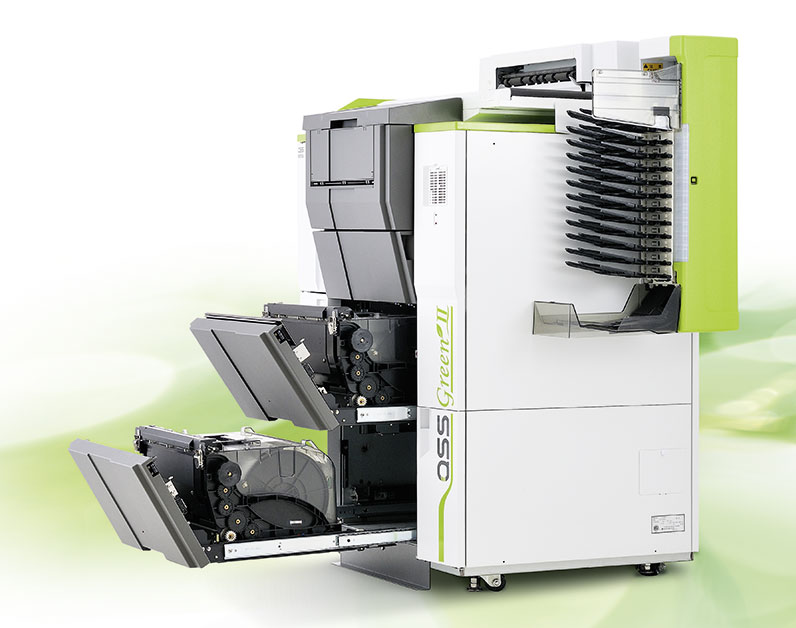

Multifunctional and fast
The universal device for specialist photographic retailers and photographers is suitable for processing smaller and larger image quantities as well as for production of individual value-added image products. Just like all current Noritsu inkjet models, it can print on one side or both sides. For duplex printing of paper rolls, its output range is from 9 x 13 cm up to the panorama format 30 x 91 cm. Up to 950 images in the 10 x 15 cm format can be output hourly “from a roll” (rated performance at 720 dpi). Paper rolls can be printed on single or dual lane, depending on the format.
Paper rolls are available in common photo paper widths of 102 to 305 mm. Paper feed depends on the width of the paper and can be freely selected from 89 mm to 914 mm in millimetre steps. Thanks to its 30 cm paper infeed, images up to 30 x 91 cm can also be produced with the QSS Green II – up to an impressive 127 per hour at a resolution of 720 dpi (rated performance). Resolution can be selected either at 720 dpi or 1440 dpi.
Sheet paper is available for duplex printing. Adapted to the output products, paper rolls and paper sheets are available in various paper thicknesses and surfaces. Tried-and-tested piezo-inkjet technology with “Dot Size Manipulation (DSM)“ is used as the printing system. It can vary every printing dot in 5 different sizes and can also include paper white as a “sixth option”.
The cartridge can also be swapped during printing. The device is delivered with a sorter with 12 trays, each for 50 pictures up to 152 mm in width, and the LED visual display of job interruption. Data can be transferred from current storage media by the operator at the EZ Controller, by the customer using “High Photo Transfer” terminals in the shop or online thanks to “HPT software”.
|Type||Inkjet duplex device for rolls and sheets for volume printing of images and for value-added image production|
|Input*||Digital image data in file formats JPEG, TIFF, PNG, RAW as DNG and S/W, CN and CU material and reflective materials after digitizing using optional scanners|
Paper step lengths
|102, 127, 152, 203, 254 and 305 mm
from 89 mm to 914 mm
|Processing formats (nominal sizes)**||For single-sided printing from 9 x 13 cm to 30 x 91 cm
For duplex printing from 20 x 20 to 30 x 30 cm
|Maximum output format (nominal size)**||Panorama printing 30 x 91 cm|
|Processing capacity (nominal output)**||950 pictures/h 10 x 15 cm at 720 dpi
127 pictures/h 30 x 45 cm at 720 dpi
|Printing system||Piezo-inkjet technology; 4 colours with dot size manipulation (DSM)|
|Resolution (selectable)||720 x 720 dpi or 1440 x 1440 dpi|
|Special features||Paper widths up to 305 mm (12 inch), standard delivery with two trays for paper rolls, duplex printing from paper feed stack, paper deck with easy-to-clean absorbers; standard delivery with 12x sorter with visual display of job interruption|
|Space requirements and empty weight of device||Net floor space approx. 0.69 m²; working area with movement zone at least 2.5 m²
Weight without paper approx. 240 kg
|Power connection and output||230 V AC socket / 16A / power approx. 1,440 VA|
|System-compatible accessories (optional)||Noritsu Film Scanner models LS-600, LS-1100, HS-1800; RIP*-PC (Raster Image Processor); “High Photo Transfer” customer terminal and retailer/customer order processing software|
|Additionally||Easy operation with EZ Controller, an up-to-date control computer (workstation); network-enabled via RIP PC|
Comments on *
Input at EZ Controller or system-compatible HPT terminal using currently available digital storage media (detailed, binding compatibility and capacity specifications of storage media as per device specifications and current, device-specific device manual)
Comments on **
Detailed, binding processing format and performance specifications as per device specifications and current, device-specific device manual.
Devices may vary depending on country and equipment, and may deviate in individual points from the data specified here.
