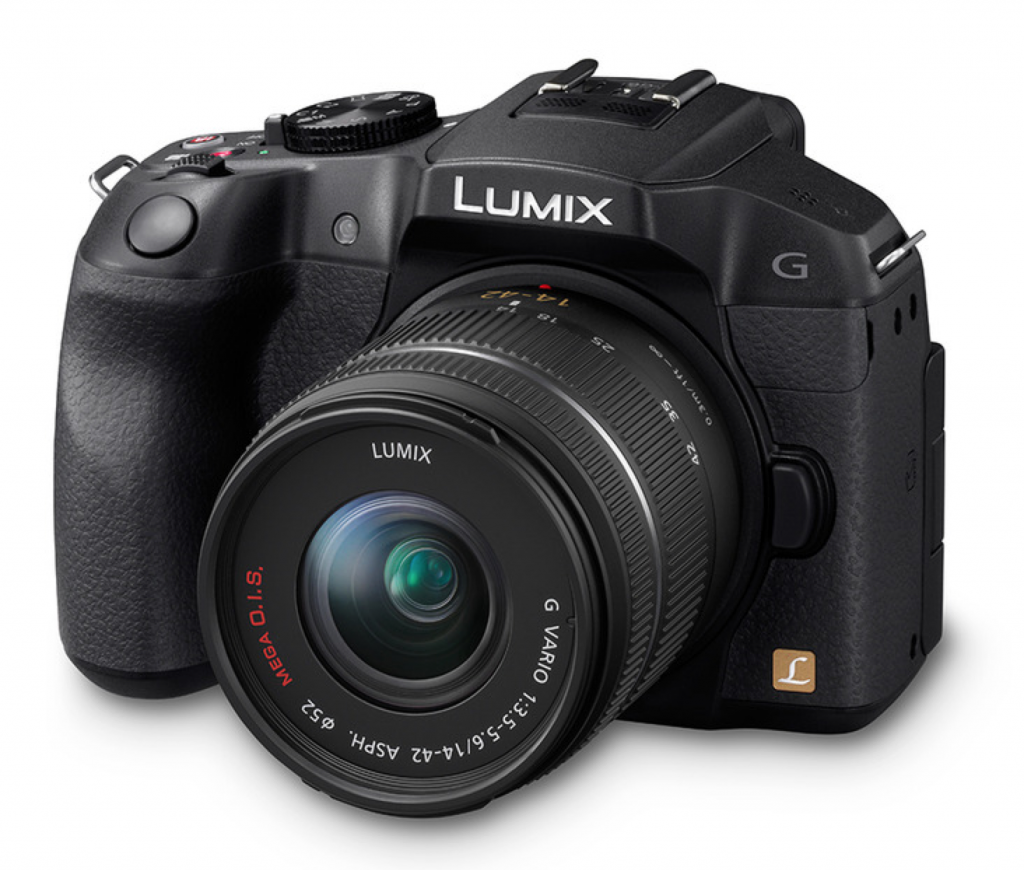

Panasonic Lumix DMC-G6

The DMC-G6 integrates 16.05-megapixel Digital Live MOS Sensor and Venus Engine featuring its advanced noise reduction systems. It effectively removes noise in multiple steps according to the noise characteristics, realizing both smoothness and sharpness according to the part of an image. In addition, the limit resolution is enhanced thanks to the precise detail reproduction and advanced Intelligent D-range Control ensures beautiful gradation with wider dynamic range than ever.

The Low Light AF in DMC-G6 gains higher performance in such as moonlight even without AF assist lamp to set focus on the subject more precisely. Combined with the Full-area Touch AF, it is possible to set focus on any point in the field of view which realizes intuitive focusing operation with free frame composition.

· Depending on the picture-taking conditions, this function may not work.

The DMC-G6 features high-speed Light Speed AF, making it possible to capture even the fast-moving subject clearly. Not only the accuracy but also the speed of AF in DMC-G6 surpasses the high-end DSLRs with Phase difference. The camera and the lens exchange the digital signal at max. 240 fps to minimize the time to focus. The DMC-G6 realizes the high speed burst shooting at 7 fps in 16.05-megapixel full resolution and max. 40 fps using an electronic shutter. Also, AF Tracking enables consecutive shooting to capture moving subject in sharp focus at 5 fps*.

* In 1-area-focusing AF mode.

The large, bright 1,440K-dot OLED (Organic Light-Emitting Diode) LVF (Live View Finder) with approx. 100% field of view in 4:3 aspect boasts excellent color reproduction and astonishingly high contrast at 10,000:1 for outstanding viewability. The display time lag is minimized dramatically compared with the predecessor DMC-G5. The image output between the LVF and the rear monitor is switched automatically with the eye sensor on the LVF, which features options of sensitivity - high, low and off - to reduce false operation during touching on the rear monitor.

The DMC-G6 records stunningly smooth, high-resolution full-HD 1,920 x 1,080 60p (NTSC area) / 50p (PAL area) videos in AVCHD Progressive (MPEG-4 / H.264) format. The DMC-G6 also supports 1080/24p native mode with 24 Mbps in AVCHD format bringing impressive afterimage to the footage.
The full-HD 1,920 x 1,080 60p (NTSC area) / 50p (PAL area) video can also be recorded in MP4 at 28 Mbps, to play it back directly on the PC or other portable electronic devices without a need of conversion.

With NFC (Near Field Communication) technology, you can connect the camera with a smartphone/tablet by just bringing them together. What is new is that the Wi-Fi® setup is extremely easy and finishes within a few seconds, making it possible to pair the camera directly to the smartphone/tablet without connection procedure of information input for authorization.

• This functions can be used with the NFC compatible devices.



• Availability of models, colors, product design and optional accessories may differ depending on the country or region. Check the website of the Panasonic sales company in your country or region.
• SDXC Logo is a trademark of SD-3C,LLC.
• SDHC Memory Cards and SDXC Memory Cards can be used only in equipment that is compatible with their respective formats.
• If the computer being used does not support SDXC Memory Cards, a message prompting you to format may appear. (Doing so will cause recorded images to be erased so do not choose to format.) If the card is not recognized, please refer to the below support site.
• The DMC-G6 is compatible with UHS-I standard SDHC/SDXC Memory Cards.
• Micro Four Thirds™ and Micro Four Thirds Logo marks are trademarks or registered trademarks of Olympus Imaging Corporation, in Japan, the United States, the European Union and other countries.
• The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.
• "AVCHD Progressive", "AVCHD", the "AVCHD Progressive" Logo and the "AVCHD" Logo are trademarks of Panasonic Corporation and Sony Corporation.
• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
• iMovie, Mac, and the Mac logo are trademarks of Apple Inc., registered in the U.S. and other countries. The Works with iMovie logo is a trademark of Apple Inc

DMC-G6

TYPE	Type				Digital Single Lens Mirrorless camera
	Recording Media				SD Memory Card, SDHC Memory Card, SDXC Memory Card (Compatible with UHS-I standard SDHC / SDXC Memory Cards)
	Image Sensor Size				17.3 x 13.0 mm (in 4:3 aspect ratio)
	Lens Mount				Micro Four Thirds mount
IMAGE SENSOR	Type				Live MOS Sensor
	Total Pixels				18.31 Megapixels
	Camera Effective Pixels				16.05 Megapixels
	Color Filter				Primary color filter
	Dust Reduction System				Supersonic wave filter
RECORDING SYSTEM	Recording File Format				Still Image: JPEG (DCF, Exif 2.3), RAW MPO (When attaching 3D lens in Micro Four Thirds System standard) Motion Image: AVCHD (Audio format: Dolby Digital 2ch) / MP4 (Audio format AAC 2ch)
	Aspect Ratio				4:3, 3:2, 16:9, 1:1
	Image Quality				RAW, RAW+Fine, RAW+Standard, Fine, Standard MPO+Fine, MPO+Standard (When attaching 3D lens in Micro Four Thirds System standard)
	Color Space				sRGB, Adobe RGB
	File Size (Pixels)	Still Image			[4:3] 4,608 x 3,456 (L), 3,264 x 2,448 (M), 2,336 x 1,752 (S), 1,824 x 1,368 (When attaching 3D lens in Micro Four Thirds System standard) [3:2] 4,608 x 3,072 (L), 3,264 x 2,176 (M), 2,336 x 1,560 (S), 1,824 x 1,216 (When attaching 3D lens in Micro Four Thirds System standard) [16:9] 4,608 x 2,592 (L), 3,264 x 1,840 (M), 1,920 x 1,080 (S), 1,824 x 1,024 (When attaching 3D lens in Micro Four Thirds System standard) [1:1] 3,456 x 3,456 (L), 2,448 x 2,448 (M), 1,744 x 1,744 (S), 1,712 x 1,712 (When attaching 3D lens in Micro Four Thirds System standard)
		Motion Image	MP4	NTSC Area	[Full HD] 1,920 x 1,080, 60fps (sensor output is 60p, 28Mbps) [Full HD] 1,920 x 1,080, 30fps (sensor output is 30p, 20Mbps) [HD] 1,280 x 720, 30fps (sensor output is 30p, 10Mbps) [VGA] 640 x 480, 30fps (sensor output is 30p, 4Mbps)
				PAL Area	[Full HD] 1,920 x 1,080, 50fps (sensor output is 50p, 28Mbps) [Full HD] 1,920 x 1,080, 25fps (sensor output is 25p, 20Mbps) [HD] 1,280 x 720, 25fps (sensor output is 25p, 10Mbps) [VGA] 640 x 480, 25fps (sensor output is 25p, 4Mbps)
			AVCHD Progressive	NTSC Area	[Full HD] 1,920 x 1,080, 60p (sensor output is 60p, 28 Mbps)
				PAL Area	[Full HD] 1,920 x 1,080, 50p (sensor output is 50p, 28 Mbps)
			AVCHD	NTSC Area	[Full HD] 1,920 x 1,080, 60i (sensor output is 60p, 17Mbps) [Full HD] 1,920 x 1,080, 60i (sensor output is 30p, 24Mbps) [Full HD] 1,920 x 1,080, 24p (sensor output is 24p, 24Mbps) [HD] 1,280 x 720, 60p (sensor output is 60p, 17Mbps)
				PAL Area	[Full HD] 1,920 x 1,080, 50i (sensor output is 50p, 17Mbps) [Full HD] 1,920 x 1,080, 50i (sensor output is 25p, 24Mbps) [Full HD] 1,920 x 1,080, 24p (sensor output is 24p, 24Mbps) [HD] 1,280 x 720, 50p (sensor output is 50p, 17Mbps)
	Continuous Recordable Time (Motion Image)*				AVCHD: Approx. 150 min with H-PS14042, H-FS1442A, H-FS14140, H-FS45150 / Approx. 140 min with H-FS014042
	Actual Recordable Time (Motion Image)*				AVCHD: Approx. 75 min with H-PS14042, H-FS1442A, H-FS14140, H-FS45150 / Approx. 70 min with H-FS014042
	Flicker Reduction				[1/50] [1/60] [1/100] [1/120] / OFF
Wi-Fi FUNCTION	Wi-Fi				IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode
	NFC				ISO/IEC 18092 (NFCIP-1) NFC-F
VIEWFINDER	Type				OLED Live View Finder (1,440,000 dots)
	Field of View				Approx. 100%
	Magnification				Approx. 1.4x / 0.7x (35 mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1
	Eye Point				Approx. 17.5 mm from eyepiece lens
	Diopter Adjustment				-4.0 - +4.0 (dpt)
	Eye Sensor				Yes
	Eye Sensor Adjustment				High / Low
FOCUS	Type				Contrast AF system
	Focus Mode				AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF
	AF Mode				Face detection / AF Tracking / 23-area-focusing / 1-area-focusing / Pinpoint
	AF Detective Range				EV -3 - 18 (ISO100 equivalent)
	AF Assist Lamp				YES
	AF Lock				Set the Fn button in custom menu to AF lock
	Others				Quick AF, Continuous AF (during motion image recording), AF+MF, Eye Sensor AF, Touch AF/AE Function, Touch Pad AF, Touch shutter, Touch MF Assist
EXPOSURE CONTROL	Light Metering System				1,728-zone multi-pattern sensing system
	Light Metering Mode				Intelligent Multiple / Center Weighted / Spot
	Metering Range				EV 0 - 18 (F2.0 lens, ISO100 equivalent)
	Exposure Mode				Program AE / Aperture Priority AE / Shutter Priority AE / Manual
	ISO Sensitivity (Standard Output Sensitivity)				Auto / Intelligent ISO / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Extended) (Changeable to 1/3 EV step)
	Exposure Compensation				1/3 EV Step, ±5 EV
	AE Lock				Set the Fn button in custom menu to AE lock
	AE Bracket				3, 5, 7 frames, in 1/3, 2/3 or 1 EV Step, ±3 EV
WHITE BALANCE	White Balance				Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2 / Color temperature setting
	White Balance Adjustment				Blue/amber bias, Magenta/green bias
	Color Temperature Setting				2,500 K - 10,000 K in 100 K
	White Balance Bracket				3 exposures in blue/amber axis or in magenta/green axis
SHUTTER	Type				Focal-plane shutter
	Shutter Speed				Still Images: Bulb (Max. 120 seconds), 1/4,000 - 60 Motion Images: 1/16,000 - 1/30 (NTSC area), 1/16,000 - 1/25 (PAL area)
	Self Timer				10 sec, 3 images / 2 sec / 10 sec
SCENE GUIDE	Still Image				Clear Portrait / Silky Skin / Backlit Softness / Clear in Backlight / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / Vivid Sunset Glow / Glistening Water / Clear Nightscape / Cool Night Sky / Warm Glowing Nightscape / Artistic Nightscape / Glittering Illuminations / Clear Night Portrait / Soft Image of a Flower / Appetizing Food / Cute Dessert / Freeze Animal Motion / Clear Sports Shot / Monochrome
	Motion Image				Clear Portrait / Silky Skin / Backlit Softness / Clear in Backlight / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / Vivid Sunset Glow / Clear Nightscape / Cool Night Sky / Warm Glowing Nightscape / Artistic Nightscape / Clear Night Portrait / Appetizing Food / Cute Dessert / Freeze Animal Motion / Clear Sports Shot / Monochrome
BURST SHOOTING	Burst Speed				SH: 40 frames/sec, H: 7.0 frames/sec (with AFS), 5.0 frames/sec (with AFC, In 1-area-focusing AF mode), M: 4.0 frames/sec (with Live View), L: 2.0 frames/sec (with Live View)
	Number of Recordable Images				9 images (when there are RAW files with the particular speed) Unlimited consecutive shooting (when there are no RAW files) (depending on memory card size, battery power, picture size, and compression)
BUILT-IN-FLASH	Type				TTL Built-in-Flash, GN10.5 equivalent (ISO160 · m), GN8.3 equivalent (ISO100 · m), Built-in Pop-up
	Flash Mode				Auto, Auto / Red-eye Reduction, Forced On, Forced On / Red-eye Reduction, Slow Sync., Slow Sync. / Red-eye Reduction, Forced Off
	Synchronization Speed				Less than 1/160 second
	Flash Synchronization				1st Curtain Sync., 2nd Curtain Sync.
MONITOR	Type				TFT LCD with Touch monitor
	Monitor Size				Free-angle 3.0 inch (7.5 cm) / 3:2 Aspect / Wide-viewing angle
	Pixels				1,036K dots
	Field of View				Approx. 100%
	Monitor Adjustment				Brightness, Contrast and Saturation, Red tint, Blue tint
LIVE VIEW	Digital Zoom				2x, 4x
	Extra Tele Conversion				Still Image: Max. 2x (Aspect ratio sets at 4:3. Not effective with L size recording. Magnification ratio depends on the recording pixels and aspect ratio.) Motion Image: 2.4x (FHD/60p, FHD/60i, FHD/30p, FHD/24p in NTSC area / FHD/50p, FHD/50i, FHD/25p, FHD/24p in PAL area), 3.6x (HD/60p, HD/30p in NTSC area / HD/50p, HD/25p in PAL area), 4.8x (VGA/30p in NTSC area / VGA/25p in PAL area)
	Other Functions				Guide Lines (3 patterns) Real-time Histogram
LEVEL GAUGE					Yes (Built-in 3 shaft accelerometer sensor)
DIRECTION DETECTION FUNCTION					Yes
FUNCTION BUTTON	Fn1, Fn2, Fn3, Fn4, Fn5, Fn6, Fn7				Wi-Fi / Q.MENU / AF/AE LOCK / LVF/Monitor Switch / One Push AE / Touch AE / Preview / Level Gauge / Focus Area Set / Photo Style / Aspect Ratio / Picture Size / Quality / Metering Mode / Focus Mode / i Dynamic / i Resolution / HDR / Electronic Shutter / Flash Mode / Flash Adjust. / Ex. Tele Conv. / Digital Zoom / Stabilizer / Motion Pic. Set / Picture Mode / Peaking / Histogram / Guide Line / Rec Area / Function Lever / Step Zoom / Zoom Speed / Sensitivity / White Balance / AF Mode / Drive Mode / Restore to Default
FUNCTION LEVER					Yes (Auto / Zoom / Exp.)
CREATIVE CONTROL	Still Image				Expressive / Retro / Old Days / High Key / Low Key / Sepia / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus / Fantasy / Star Filter / One Point Color / Sunshine
	Motion Image				Expressive / Retro / Old Days / High Key / Low Key / Sepia / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Fantasy / One Point Color
CREATIVE VIDEO MODE	Exposure Mode				Program AE / Aperture-Priority / Sutter-Priority / Manual Exposure
PHOTO STYLE	Still Image and Motion Image				Standard / Vivid / Natural / Monochrome / Scenery / Portrait / Custom
PLAYBACK	Playback Mode				Normal playback, 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (Max. 16x), Slideshow (duration & effect is selectable), Playback Mode (Normal / Picture / Video / 3D Play / Category / Favorite), Location Logging, Clear Retouch, Title Edit, Text Stamp, Video Divide, Time Lapse Video, Stop Motion Video, Resize, Cropping, Rotate, Favorite, Print Set, Protect, Face Recognition Edit
IMAGE PROTECTION / ERASE	Protection				Single / Multi, Cancel
	Erase				Single / Multi / All / Except Favorite
PRINT	Direct Print				PictBridge compatible (Print size, Layout and Date settings are selectable)
INTERFACE	USB				USB 2.0 High Speed Multi
	HDMI				mini HDMI TypeC Video: Auto / 1080p / 1080i / 480p (576p in PAL system) Audio: Stereo
	Audio Video Output				Monaural Type, NTSC / PAL, NTSC only for North America * Check the website of the Panasonic sales company in your country or region for details on the products that are available in your market.
	Remote Input				φ2.5mm for remote
	External Microphone Input				φ3.5mm for external microphone
	Microphone				Stereo, Wind-cut: AUTO / HIGH / STANDARD / LOW / OFF Microphone level adjustable: 19 levels
	Speaker				Monaural
LANGUAGE	OSD Language				English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Russian, Chinese (Traditional), Chinese (Simplified), Dutch, Thai, Korean, Turkish, Portuguese, Arabic, Persian, Japanese, Swedish, Danish, Finnish, Greek, Vietnamese * Check the website of Panasonic sales company in your country / region or ask customer support for details of the OSD language available on the products sold in your country / region.
POWER	Battery				Li-ion Battery Pack (7.2V, 1,200mAh) (Included) Battery Charger
	Battery Life (CIPA Standard)**				Approx. 350 images with H-FS1442A, H-FS45150 Approx. 340 images with H-PS14042, H-FS14140 Approx. 330 images with H-FS014042
DIMENSIONS / WEIGHT	Dimensions (W x H x D)				122.45 x 84.6 x 71.4 mm / 4.82 x 3.33 x 2.81 inch (excluding protrusions)
	Weight				Approx. 390 g / 0.86 lb (SD card, Battery, Body) Approx. 340 g / 0.75 lb (Body only) Approx. 485 g / 1.07 lb (SD card, Battery, H-PS14042 lens included) Approx. 500 g / 1.10 lb (SD card, Battery, H-FS1442A lens included) Approx. 555 g / 1.22 lb (SD card, Battery, H-FS014042 lens included) Approx. 590 g / 1.30 lb (SD card, Battery, H-FS45150 lens included) Approx. 655 g / 1.44 lb (SD card, Battery, H-FS14140 lens included) Approx. 700 g / 1.54 lb (SD card, Battery, H-FS1442A + H-FS45150 lenses included) Approx. 755 g / 1.66 lb (SD card, Battery, H-FS014042 + H-FS45150 lenses included)
OPERATING ENVIRONMENT	Operating Temperature				0 °C to 40 °C (32 °F to 104 °F)
	Operating Humidity				10%RH to 80%RH
STANDARD ACCESSORIES	Software				PHOTOfunSTUDIO 9.2 PE, SILKYPIX® Developer Studio 3.1 SE, LoiLoScope (trial version), USB Driver
	Standard Accessories
	DMC-G6 Kit Body, Battery Charger, Battery Pack, Body Cap, USB Connection Cable, Shoulder Strap, CD-ROM DMC-G6K Lens Kit Body, H-FS1442A or H-FS014042*, Lens Cap, Lens Hood, Lens Rear Cap, Battery Charger, Battery Pack, Body Cap, USB Connection Cable, Shoulder Strap, CD-ROM * Depending on your country or region. DMC-G6H Lens Kit Body, H-FS14140, Lens Cap, Lens Hood, Lens Rear Cap, Battery Charger, Battery Pack, Body Cap, USB Connection Cable, Shoulder Strap, CD-ROM DMC-G6W Double Lens Kit Body, H-FS1442A or H-FS014042*, H-FS45150, Lens Cap x 2, Lens Hood x 2, Lens Rear Cap x 2, Battery Charger, Battery Pack, Body Cap, USB Connection Cable, Shoulder Strap, CD-ROM * Depending on your country or region. DMC-G6X Lens Kit Body, H-PS14042, Lens Cap, Battery Charger, Battery Pack, USB Connection Cable, Shoulder Strap, CD-ROM

LUMIX G X VARIO PZ 14-42mm / F3.5-5.6 ASPH. / POWER O.I.S. (H-PS14042)

* When the lens is retracted.

LUMIX G VARIO 14-42mm / F3.5-5.6 II ASPH. / MEGA O.I.S. (H-FS1442A)

LUMIX G VARIO 14-42mm / F3.5-5.6 ASPH. / MEGA O.I.S. (H-FS014042)

LUMIX G VARIO 14-140mm / F3.5-5.6 ASPH. / POWER O.I.S. (H-FS14140)

LUMIX G VARIO 45-150mm / F4.0-5.6 ASPH. / MEGA O.I.S. (H-FS45150)

* Note: SDHC Memory Cards and SDXC Memory Cards can be used only in equipment that is compatible with their respective formats.

• The DMC-G6 is compatible with UHS-I standard SDHC/SDXC Memory Cards.

The SDHC Memory Card can be used only if the SDHC logo is indicated on the equipment or in the operation manual. It cannot be used with equipment that supports only the SD Memory Card.
