Model:

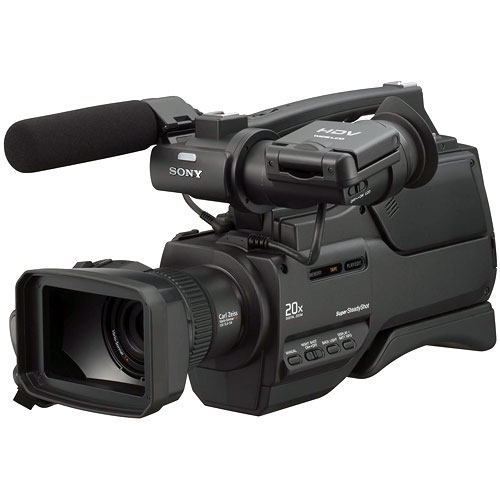

Steady your shots with this shoulder mount design and look the part. Reap the benefits of HDV and DV recording. Work with the practical choice of recording on to tape. Join Sony’s leading HDV family with this entry level camcorder and position yourself with this cost effective solution.
- 1/2.9-inch ClearVid CMOS Sensor
- Optical 10x zoom by Carl Zeiss Vario-Sonner T lens
- Super SteadyShotTM (Optical) Image Stabilizer
- Shoulder-mount design
- Full Compatibility with your Current DV System
| Lens |
Carl Zeiss Vario-Sonnar T* zoom lens, 10x (optical), f = 5.4 to 54 mm, filter diameter: 37 mm |
| Focal length |
16:9 video mode: 40 to 400mm (equivalent to 35mm film) 4:3 video mode: 49 to 490mm (equivalent to 35mm film) 16:9 photo mode: 40 to 400mm (equivalent to 35mm film) 4:3 photo mode: 37 to 370mm |
| Imaging system |
1/2.9-inch, ClearVid CMOS Sensor system |
| Maximum still image recording |
MAX. 6.1M (2848 x 2136) (4:3) |
| Picture elements |
Approx. 3200K pixels |
| Effective pixels |
16:9 video mode: Approx. 2280K pixels 4:3 video mode: Approx. 1710K pixels 16:9 photo mode: Approx. 2280K pixels 4:3 photo mode: Approx. 3040K pixels |
| Recording format |
HDV1080/50i, DV/DV(LP)576/50i (PAL) |
| Play out/Down conversion format |
HDV1080/50i, DV/DV(LP)576/50i (PAL) |
| Playback/Recording time |
HDV/DV SP: Max. 63 min with PHDVM-63DM cassette DV LP: Max. 94.5 min with PHDVM-63DM cassette |
| Component video output |
RCA Pin x3 |
| Composite video output |
RCA Pin x1 |
| S Video output |
mini-DIN 4-pin x1 |
| Digital video output |
HDMI connector |
| HDV/DV input/output |
i.LINK interface (IEEE 1394, 4-pin connector) |
| Audio output |
RCA Pin x2 (L,R) |
| Audio input |
Stereo mini jack (φ3.5 mm), ECM-PS1 external shot-gun stereo microphone is supplied. |
| Headphones |
Stereo mini jack (φ3.5 mm) |
| LANC |
Stereo mini-mini jack (φ2.5 mm) |
| DC Input |
AC-L100 AC adaptor is supplied. |
| LCD viewfinder |
0.27-inch type*2, approx. 123,200 dots, 16 : 9 aspect ratio |
| LCD monitor |
2.7-inch type*2, Clear Photo LCD plus, approx. 211,200 dots, hybrid type, 16 : 9 aspect ratio, touchscreen |
| Mass |
2.7Kg (6 lb 0 oz) (w/o Tape,Battery,etc) |
| Power requirements |
8.4V / 7.2V (AC adaptor/Battery) |
| Power consumption |
HDV Approx. 4.6W / 5.0W (VF/VF+LCD) DV Approx. 4.4W / 4.8W (VF/VF+LCD) |
| Operating temperature |
0 to 40 °C (32 to 104 °F) |
| Storage temperature |
-20 to 60 °C (-4 to 140 °F) |
| AC Adaptor |
AC-L100 AC adaptor |
| Battery |
NP-F570 Rechargeable Battery Pack |
| Lens protection |
Lens Cap (small), Lens Hood |
| Microphone |
Microphone Windscreen |
| Viewfinder accessories |
Large size eye cup |
