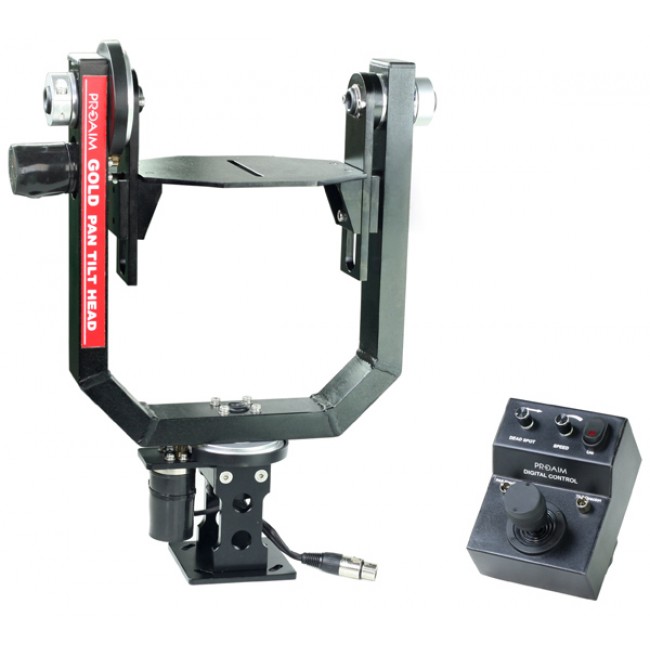

At thecinecity, continuous improvement is much more than an idea or a couple of words. For us it is a way of life. Like our customer service, R&D is an ongoing process of refinement. Our third generation PROAIM GOLD - PAN AND TILT HEAD, is a perfect example of this business principle.One that we are committed to in all that we do.



• Gold Pan and Tilt Head
• Joystick Control Unit
• 12volt AC Adapter
• 23 Foot/7 meter Long Control Cable
• 1.5 meter long 3pinXLR cable (for using 12VDC Battery Packs)
• Camera Mounting Screw (1/4")
• 4 Head Mounting Screws
• AC Adapter
• Carrying Case With Custom-Fit Packing
• Instruction Manual



• 360 degree endless tilting and panning movement with reversal point.
• Speed is easily controlled and adjusted by "Speed" and "Dead Spot" pots on the control unit.
• The Deadspot control determines the center band of the joystick where no motion will occur ensuring no crossover to the other axis when not wanted.
• Occasional exterior usage with protection rain cover.
• Supplied carrying case with custom fit packing
• PROAIM Gold Pan Tilt Head comes with assembled wiring of top and bottom motors.
• Install the Power out to head (3 pin connector) and 12 volt DC power (4 pin XLR) in rear of joystick box and you are good to go.

• Maximum camera weight 16.5 lbs.
• Pan movement 360 degrees
• Tilt movement 360 degrees
• Variable-controlled speed from 6 degrees/sec (low speed) to 51 degrees/sec (high speed)
• Minimum height of head 18"
• Maximum height of head 26"
• Precision machined parts with the highest standards of industrial grade electronic components
• AC Adapter input - AC 100 - 240V - output - DC 12V -2A
• Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees.
• 2 minutes to pan 360 degrees at slowest speed without stopping and 7 seconds at its highest speed.
• Consistent travel at slowest speed without stopping.
• Camera platform height can be adjusted at any point.





Gears are made of Brass. The XLR cables are built in to the motor and blends well with the rest of the frame.



• The PROAIM™ PAN TILT HEAD comes with Joystick control system, including a 23 foot/7 meter Cable and AC Adapter.
• The joystick may be operated in the handheld position, from a flat surface such as a tabletop, or attached to the boom arm of Jib.
• For Outdoor shooting, use the supplied 1.5mtr long 3pinXLR cable with your 12v Brick or Car Battery.




• Joystick has proportional linear movement i.e. farther you move the joystick, the faster the head moves.
• Joystick is touch sensitive:
         Small movement – less speed,
         More movement – more speed.

BONUS UNIVERSAL ADAPTER FOR WORLDWIDE USE Our universal adapter is a compact one piece unit with 4 international plug adapters and a child protection safety shutter, power indicator and surge protecton and fits plugs in Europe.UK/USA/JAPAN/AUSTRALIA/ SPAIN and almost every country in the world.

Foam lined, custom fit, protective storage cases with easy tote handles.
