Feature 2High-definition and high-luminance 2.36M-dot “OLED electronic viewfinder”

By combining the best “OLED electronic viewfinder” in its class with FUJIFILM's original optical technology the X-E1 offers a bright, wide field of vision of which its entirety can be seen at a glance.

“Natural Look” Electronic Viewfinder Debuts
The Fusion of FUJIFILM Optical Technology and a new 2.36M-dot Organic EL
Panel

Adopting an optical structure of two glass lenses and a double aspherical lens, the viewfinder provides a comfortable and natural view of the entire scene with an horizontal apparent field of view of 25°. FUJIFILM's optical engineers have achieved a distortion-free view with astounding edge-to-edge clarity and maintained an excellent field of vision even if the photographer's eye position shifts.

Diopter Adjustment Dial

The X-E1 offers a diopter correction dial that enables users to adjust the strength of the viewfinder in accordance with their eyesight. The dial is located on the side of the viewfinder and can be adjusted from -4m^-1 - +2m^-1 (dtp).

Diopter Adjustment Dial

Example : Narrow horizontal apparent field of view 18°

X-E1 : Horizontal apparent field of view 25°

2.36M-dot Organic EL Panel

With approx. 2.36M dots of resolution and 100% coverage, the X-E1 display panel provides incredible detail to perfectly frame and focus your shots. The rich color expression of OLED technology and high contrast ratio of 1:5000* reflect exposure, white balance and film simulation settings with high fidelity, letting you confirm changes in real time.

• * Depending on the shooting conditions.

Feature 3Design & Accessories

Two different X-E1s with two personalities. The analog interface enabling instinctive operation that allows you to capture “the perfect moment”.

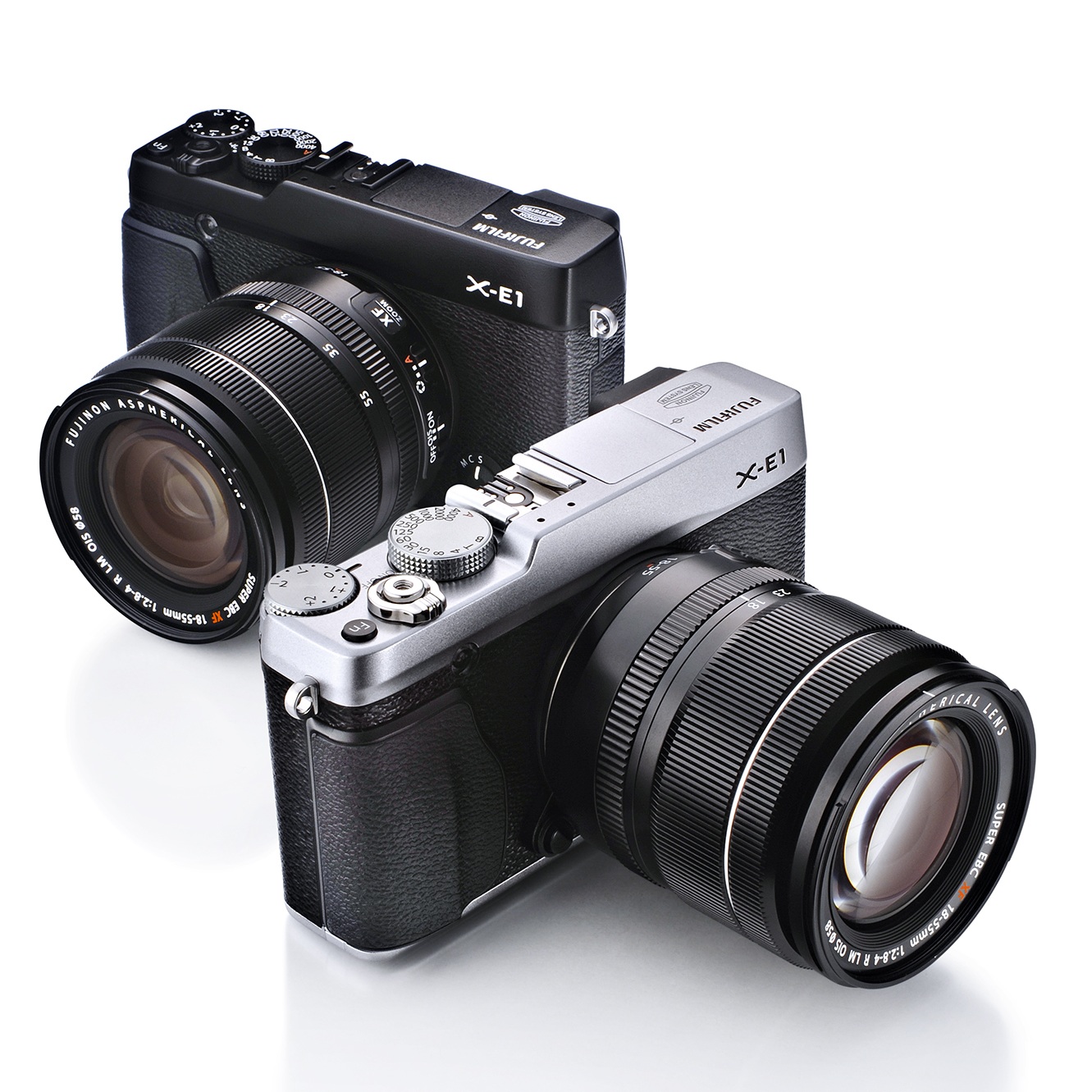

Two X-E1s, two personalities.

With an 18-55mm lens the X-E1 is compact and has a bright F2.8 as well as an image stabilization function for four shutter speeds. It is available in black or silver.

Black

The black X-E1 allows the subject to forget about the camera and is therefore optimal for reportage work.

Silver

The silver X-E1's refined design and feel stands out among the X series and is great for casual occasions. It's perfect for the younger generation.

Silver

Black

The design of the X-E1 prioritizes “photographing”

The design of the X-E1 allows you to catch those “perfect moments”

The X-E1 employs numbered dials for aperture, shutter speed and exposure compensation and is equipped with a viewfinder that allows you to select your composition.
The design of the X-E1 resembles the cameras of the film age, and there is wisdom that has been passed down behind it. This gives the X-E1 commonality that transcends the ages.
The X-E1 is designed to enable you to “quickly” capture that moment you wish to document.

An analog interface allowing you to check settings at a glance.

Settings can be checked even when the camera is off.
High precision parts provide just the right amount of torque and resistance when clicking the dials thereby allowing you to get suitable response when photographing.

Interface enabling settings to be changed while looking through the viewfinder.

With the exposure dial and shutter speed controlled with the right hand and the aperture ring controlled with the left, the X-E1 enables you to change settings instinctively by feel without looking up from the viewfinder.
Being able to change settings in an instant means you won't miss that “perfect shot”.

High-rank, high quality design.

Beautiful Magnesium Die-Cast Top and Front Cover - Stylish Yet Strong

“Made in Japan” Premium Quality

Microsite
Fujifilm X-E1's Design & Accessories

X-E1 Special Site

The compact X-E1 is equipped with an internal flash.

The built-in flash corresponds to GN7*.
You can make your subject stand out using the flash, such as the daytime synchro when the sun is in front of you or the capture light when photographing people.
By combining the superior highly sensitive performance of the X-E1 with highly sensitive settings you can achieve high resolution with little noise by compensating for the amount of light present.
From assist lamps to full flash the X-E1 will broaden the horizon of your photography.

• * ISO200 · m

Accessories

Leather Case : BLC-XE1

The luxurious texture of the genuine leather.
Details like the wrapping cloth to protect the lens when storing it in a bag and the design of the top cover that lets you open and close the case with speed and ease so you won't miss the moment.

• Accessories

Hand Grip : HG-XE1

Ergonomically Designed Hand Grip for a Sure Hold on the Moment.

• Accessories

Shoe Mount Flash : EF-X20

Choose from three different types of dedicated external flashes to fit your needs.

• Accessories

Interchangeable Fujinon XF Lens

FUJIFILM is pleased to announce the launch of two new models to the FUJINON XF Lens range bringing the total number of lenses available to five, offering much broader photographic appeal.
Another unique five lenses will be added in the line-up in early 2013, making the total to 10 lenses.

• XF LENS Roadmap

Feature 4Quick Response

The X-E1 achieves quick response compatible with DSLR cameras thereby enabling you to never miss a shot.

• * When QUICK START mode set to ON.
• ** When XF18-55mmF2.8-4 R LM OIS is set.

Feature 5Other Features of X-E1

Find great features in X-E1.

Use the “Drive” button to switch to photography modes you use often.

You can smoothly change to the following settings using the DRIVE button.

• Recording High-Definition (HD) Movies
• Bracketing

   -AE Bracketing
   -ISO Bracketing
   -Film Simulations Bracketing
   -Dynamic Range Bracketing

• Continuous Shooting (Burst Mode)
• Panoramas

HD MOVIE

Full HD Movies with Cinema-like Image Quality

Shoot Full HD movies (1920 x 1080) at 24fps, the same frame rate used for cinema films. In addition to using Monochrome or other Film Simulation modes to enhance your artistic expression, you can take full advantage of the combination of X-E1's large sensor and bright XF lenses to capture movies with a large and beautiful defocused “bokeh” background. Connect stereo microphones (commercially sold) to the microphone connector to record audio with enhanced clarity and presence.

Film Simulation modes for Movie shooting

PROVIA

True-to-life natural tonality and color reproduction.

Velvia

Shoot HD Movies in the vibrant colors of Velvia.

MONOCHROME

Capture the action in richly expressive monochrome tones.

Microphone connector

The body is equipped with a microphone connector. Connect the stereo microphone (commercially sold) to record audio with enhanced clarity and presence.

MIC LEVEL ADJUSTMENT

Adjust the microphone volume level (4 settings) while watching the level meter for optimum audio recording to prevent either loss or distortion.

White Balance Setting

Kelvin temperature setting is also available for detailed correction to match the color temperature of the shooting location. Fine tune white balance to capture natural skin color or express your creative intent.

• * Above images are for illustrative purposes only.

Selection of 4 Powerful Auto Bracketing Functions

AE Bracketing

One press of the shutter captures 3 shots of the same scene at different exposures. AE bracketing can be set in 1/3, 2/3 and 1 EV steps.

+1/3

±0

-1/3

ISO Sensitivity Bracketing

Based on a single exposure, this bracketing function automatically reproduces the scene as 3 images, each with a different ISO sensitivity and without changing the shutter speed and aperture, letting you capture the moment with varying degrees of brightness. Setting is possible in 1/3, 2/3 and 1 EV steps.

ISO200

ISO400

ISO800

Dynamic Range Bracketing

Press the shutter once and high-speed continuous shooting captures 3 exposures of the same scene, each at a different dynamic range setting (100%, 200% & 400%).

100%

200%

400%

Film Simulation Bracketing

Just release the shutter once and produce 3 images of the scene based on a single exposure, each image with a different Film Simulation effect that you have freely selected and pre-set.

Velvia

MONOCHROME (no filter)

SEPIA

6fps High Speed Continuous Shooting

Shoot up to 6 frames per second with high-speed continuous shooting. Capture a series of exposures of moving subjects and other challenging photographic scenes and later select the best shot.

Motion Panorama

Capture Panorama Shots and Show Them in Stunning Large-size Prints

Just sweep the camera across the scene, and the X-E1 captures multiple images and seamlessly stitches them together to form a single panorama photo. Even when enlarged to an A3-size print, there is virtually no loss of resolution. Holding the camera horizontally or vertically, Motion Panorama lets you shoot the scene with an “M” or “L” angle of view.

• * The photographed angle of view will vary depending on the mounted lens.

Customization Function

Assign Frequently Used Functions to the Fn Button

Assign any one of the following frequently used functions to the Fn (Function) button and enjoy smooth one-touch controls during shooting.
MULTIPLE EXPOSURE / PREVIEW DEPTH OF FIELD / ISO / SELF-TIMER / IMAGE SIZE / IMAGE QUALITY / DYNAMIC RANGE / FILM SIMULATION / WHITE BALANCE / AF MODE / SELECT CUSTOM SETTING / MOVIE / RAW

Save Custom Settings

Create, save and instantly recall up to 7 sets of user-defined settings covering all parameters from ISO sensitivity to white balance.

Focusing

Multiple Exposure

Add Artistry to Your Photographic Expression

In film cameras, multiple exposure is the photographic technique of superimposing one image on another by double exposing a single frame of film. Through advanced digital processing, X-E1 can simulate this technique, expanding your creative expression. Just select Multiple Exposure mode and take your first shot using either the EVF or LCD monitor. Next, while viewing the first image, you can frame and shoot the second exposure. This ability to precisely position and focus the second shot lets you not only “see” how the finished Multiple Exposure image will look, but also explore other creative photographic possibilities.

High Performance LCD Monitor

2.8-inch, 460,000-Dot LCD Features High Contrast, High Brightness and the Convenience of a Wide Viewing Angle
On the LCD, you can view not only the same image displayed in the electronic viewfinder, but also switch it to show a simple shooting information display.

4:3 Aspect Ratio

The LCD's 4:3 aspect ratio provides a large screen to view the complete 3:2 image with ample room for display of shooting information outside the image frame.

Shooting Information Display

The large display of numerical data and icons lets you know the state of camera settings at a glance. Check the key shooting data without stress or hassle, leaving you free to concentrate on framing the shot in the viewfinder.

Electronic Horizon Leveling Gauge

When composing a shot in the spacious LCD, the built-in electronic level display makes it easy to align the image with the true horizon.

Framing Guidline

The “FRAMING GUIDELINE” option in Tab 4 of the shooting menu offers a choice of GRID 9, GRID 24, and HD FRAMING. The “grid” options are a very effective aid to composition when, for example, framing photographs with the subjects arranged along a diagonal.

Swift Menu Page Selection and Scroll-free Navigation Within Each Page

In the Shooting and Playback menu, functions are organized into tabbed single-page screens for fast selection and setting. Just select a tab and find the item in the displayed list without scrolling.

1. 1. Shooting menu (5 pages)
2. 2. Set-Up menu (3 pages)
3. 3. PlayBack menu (2 pages)
4. 4. Set-Up menu (3 pages)

Q (Quick Menu) Button

Fast Shortcut to Shooting Menu Settings

Skip directly to frequently used shooting menus with the Q (Quick Menu) button. ISO sensitivity setting, White Balance, Film Simulation and other frequently used shooting settings are displayed in a list. Just use the 4-way controller to select the item and the command dial to change settings for speedy operation while shooting.

In-camera RAW Converter

The built-in RAW data converter lets you view results in the field without first transferring the data to a PC. This easy-to-use feature not only takes into account exposure compensation, white balance and other in-camera image quality settings, but also lets you apply Film Simulation modes in the converter mode.

Special FUJIFILM X-E1 RAW Conversion Software Included

For the management, viewing and converting of RAW image data on your PC, you will find SILKYPIX® viewer and RAW conversion software included. The special FUJIFILM X-E1 version of this software ensures versatility and ease of use, plus movie playback functionality.

White Balance Setting

Color Temperature (Kelvin Value) Setting

Compensate for the color of different light sources with a choice of 9 white balance presets in addition to Auto White Balance. You can also make custom white balance settings using a gray card or other surface, or by selecting the optimum color temperature (Kelvin value).

Precise White Balance Setting

Fine tune white balance by adjusting R (red) ⇔ Cy (cyan) and B (blue) ⇔ Ye (yellow) in ±9 steps. You can make adjustments and confirm their effect on the actual image during shooting. It is ideal for accurate correction of white balance or to explore the creative effects that can be achieved with filters.

ISO100-25600 Sensitivity Setting Range

Expand the normal sensitivity range from ISO200-6400 to ISO100, 12800 or even ISO25600. In dynamic lighting conditions, you can now set a sensitivity ceiling within the range of ISO400-6400 and keep the camera on ISO Auto.

• Exceptionally low noise even at high sensitivity.

Image Quality Control

Color, Tone & Sharpness Adjustment

Fine-tune image quality with “COLOR” for color saturation adjustment, “HIGHLIGHT TONE” and “SHADOW TONE” for tweaking contrast in highlights and shadows, and “SHARPNESS” to stress or soften image outlines. With this built-in detailed image quality control, you can produce an image that precisely matches your creative objectives.

2 Color Space Types

Select either sRGB for a standard range of color reproduction on general displays or Adobe RGB® for its broader colour rendition depending on how you intend to output and use the image.

Noise Reduction Control

Choose from 5 different levels of noise reduction depending on whether your priority is the crispness of resolution or keeping noise reduction to a minimum, and explore the capability to tune sensitivity-related textural quality when shooting high-sensitivity scenes.

From SLEEP to ON in 0.5 sec.

After turning OFF the power, the X-E1 enters a “sleep” mode (for a maximum of 24 minutes). If the power is turned ON during this time, the X-E1 “wakes up” instantly, reducing the normal startup time from 1.0 sec. to approx. 0.5 sec. ready for you to frame and capture the moment.

Exposure Control

Easy-to-use AE/AF Lock Button

Lock both exposure and focus for the subject by touching the special AE/AF Lock button conveniently placed in the upper area of the rear control panel. Using the setup menu, you can also set the button to lock only AE or AF.

Selectable Metering Modes

Swiftly select the best metering for your shot: “MULTI” for accurate response to a variety of lighting conditions, “SPOT” for precise reading of approximately 2% of the viewfinder area in the center of the screen, and “AVERAGE” for an average exposure setting for the entire scene.

Specifications

Model Name	FUJIFILM X-E1
Number of effective pixels	16.3 million pixels
Image sensor	23.6 mm x 15.6 mm (APS-C) X-Trans CMOS with primary color filter Sensor Cleaning system Ultra Sonic Vibration
Storage media	SD memory card / SDHC memory card / SDXC (UHS-I) memory card*1
File format	still image JPEG (Exif Ver 2.3)*2, RAW (RAF format), RAW+JPEG (Design rule for Camera File system compliant / DPOF-compatible) movie H.264 (MOV) with Stereo sound
Number of recorded pixels	L : (3:2) 4896 x 3264 / (16:9) 4896 x 2760 / (1:1) 3264 x 3264 M : (3:2) 3456 x 2304 / (16:9) 3456 x 1944 / (1:1) 2304 x 2304 S : (3:2) 2496 x 1664 / (16:9) 2496 x 1408 / (1:1) 1664 x 1664 L  Vertical: 7680 x 2160 Horizontal: 7680 x 1440 M  Vertical: 5120 x 2160 Horizontal: 5120 x 1440
Lens mount	FUJIFILM X mount
Sensitivity	Equivalent to ISO 200 - 6400 (Standard Output Sensitivity) AUTO mode: AUTO (400) / AUTO (800) / AUTO (1600) / AUTO (3200) / AUTO(6400) Extended output sensitivity equivalent ISO 100, 12800 and 25600
Exposure control	TTL 256-zones metering, Multi / Spot / Average
Exposure mode	Programmed AE, Shutter priority AE, Aperture priority AE, Manual exposure
Exposure compensation	-2.0 EV - +2.0 EV, increment with 1/3 EV step
Image Stabilizer	Lens shift type (when OIS type lens is set)
Shutter control	Focal Plane Shutter
Shutter speed (with mechanical shutter)	(P mode) 1/4 sec. to 1/4000 sec., (All other modes) 30 sec. to 1/4000 sec. Bulb (max. 60 min.) Time 1/2 to 30 sec. Synchronized Shutter speed for flash : 1/180 sec or slower * 1/180 sec can be automatically set at some shooting condition on P mode or A mode.
Continuous shooting	Max 6 / 3 fps selectable
Auto bracketing	AE Bracketing (±1/3 EV, ±2/3 EV, ±1 EV) Film Simulation Bracketing (Any 3 type of film simulation selectable) Dynamic Range Bracketing (100%, 200%, 400%) ISO sensitivity Bracketing (±1/3 EV, ±2/3 EV, ±1 EV)
Focus	mode Single AF / Continuous AF / MF Distance Indicator type TTL contrast AF, AF assist illuminator available AF frame selection Area (EVF / LCD: 49 areas with 7 x 7) / Multi * changeable size of AF frame: among 5 type
White balance	Automatic scene recognition Custom, Color temperature selection (K) Preset: Fine, Shade, Fluorescent light (Daylight), Fluorescent light (Warm White), Fluorescent light (Cool White), Incandescent light, underwater
Film Simulation mode	10 type (PROVIA/STANDARD, Velvia/VIVID, ASTIA/SOFT, PRO Neg Hi, PRO Neg Std, MONOCHROME, MONOCHROME+Ye FILTER, MONOCHROME+R FILTER, MONOCHROME+G FILTER, SEPIA)
Dynamic range setting	AUTO (100-400%), 100%, 200%, 400%
Self-timer	Approx. 10 sec. / 2 sec. Delay
Flash	Manual pop-up flash (Auto flash) Guide number: approx 7 (ISO200 · m)
Flash modes	Red-eye removal OFF: Auto, Forced Flash, Suppressed Flash, Slow Synchro. Rear-curtain Synchro, Commander Red-eye removal ON: Red-eye Reduction Auto, Red-eye Reduction & Forced Flash, Suppressed Flash, Red-eye Reduction & Slow Synchro. Red-eye Reduction & Rear-curtain Synchro, Commander
Hot shoe	Yes (dedicated TTL Flash compatible)
Viewfinder	0.5-in., approx.2,360,000-dot OLED color viewfinder Coverage of viewing area vs. capturing area: approx. 100% Eye point: approx. 23 mm Diopter adjustment: -4m-1 to +2m-1 Built-in eye sensor
LCD monitor	2.8-in, approx. 460,000-dot, TFT color LCD monitor (Approx. 100% coverage)
Movie recording	1920 x 1080 pixels, 1280 x 720 pixels (24 frames/sec.) with stereo sound Individual movies cannot exceed 29 minutes in length.
Photography functions	Select custom setting, Motion panorama, Color space, Color (Saturation), sharpness, Dynamic range, Film simulation, Gradation, Auto red-eye removal (by face detection function), Framing guideline, Frame No. memory, Histogram display, Preview depth of focus, Focus check, Electronic level, Multiple exposure, Fn button setting (RAW, Movie, etc)
Playback functions	RAW conversion, Image rotate, Red-eye reduction, Photobook assist, Erase selected frames, image search, Multi-frame playback (with micro thumbnail), Slide show, Mark for upload, Protect, Crop, Resize, Panorama, Favorites
Other functions	PictBridge, Exif Print, Language selection, Time difference, Quick start mode, Silent mode
Terminal	Video output - Digital interface USB 2.0 High-Speed HDMI output HDMI mini connector Microphone/shutter release input ø2.5mm, stereo mini connector
Power supply	NP-W126 Li-ion battery (included)
Dimensions	129 (W) mm x 74.9(H) mm x 38.3(D) mm / 5.1 in.(W) x 2.9 in. (H) x 1.5 in. (D) (Minimum depth: 30.9 mm/ 1.2 in.)
Weight	Approx. 350g / 12.3 oz. (including battery and memory card) Approx. 300 g / 10.6 oz. (excluding accessories, battery and memory card)
Operating Temperature	0°C - 40°C
Operating Humidity	10 - 80% (no condensation)
Guide to the number of available frames for battery operation	approx 350 frames (When XF35mmF1.4 R is set)
Starting up period	Approx 0.5 sec, when QUICK START mode set to ON Approx 1.0 sec, when QUICK START mode set to OFF * evaluated by FUJIFILM method
Accessories included	Li-ion battery NP-W126 Battery charger BC-W126 Shoulder strap USB cable Body cap Metal strap clip Protective cover Clip attaching tool CD-ROM (Viewer software, RAW File Converter etc.*3) Owner's manual
Optional accessories	Li-ion battery NP-W126 Battery charger BC-W126 Shoe Mount Flash EF-20, EF-42, EF-X20 M Mount adapter Protector Filter PRF-58 58mmø Protector Filter PRF-52 52mmø Protector Filter PRF-39 39mmø Remote release RR-80 Hand Grip HG-XE1 Leather Case BLC-XE1

• *1 Please see the Fujifilm website to check memory card compatibility.
• *2 Exif 2.3 is a digital camera file format that contains a variety of shooting information for optimal printing.
• *3 OS compatibility
  Viewer software: Windows 8 / Windows 7 / Vista / XP, Mac OS X 10.5-10.6
  RAW File Converter: Windows 8 / Windows 7 / Vista / XP, Mac OS X 10.5-10.7

Memory Card Capacity and Image Quality / Size

All figures are approximate; file size varies with the scene recorded, producing wide variations in the number of files that can be stored.

Number of images

Modes		Still image (L)
Number of recorded pixels		4896 x 3264 (3:2)		4896 x 2760 (16:9)		3264 x 3264 (1:1)
Quality		JPEG FINE	JPEG NORMAL	JPEG FINE	JPEG NORMAL	JPEG FINE	JPEG NORMAL
SDHC memory card	4 GB	580	890	680	1030	840	1270
	8 GB	1170	1800	1370	2080	1700	2560

Number of images

Modes		Still image (M)
Number of recorded pixels		3456 x 2304 (3:2)		3456 x 1944 (16:9)		2304 x 2304 (1:1)
Quality		JPEG FINE	JPEG NORMAL	JPEG FINE	JPEG NORMAL	JPEG FINE	JPEG NORMAL
SDHC memory card	4 GB	900	1620	1040	1840	1270	2200
	8 GB	1810	3260	2100	3700	2560	4430

Number of images

Modes		Still image (S)
Number of recorded pixels		2496 x 1664 (3:2)		2496 x 1408 (16:9)		1664 x 1664 (1:1)
Quality		JPEG FINE	JPEG NORMAL	JPEG FINE	JPEG NORMAL	JPEG FINE	JPEG NORMAL
SDHC memory card	4 GB	1560	2620	1780	2930	2120	2860
	8 GB	3140	5280	3590	5910	4280	5770

Number of images

Modes		Still image
Number of recorded pixels		Motion Panorama L Vertical 7680 x 2160		Motion Panorama L Horizontal 7680 x 1440		Motion Panorama M Vertical 5120 x 2160		Motion Panorama M Horizontal 5120 x 1440
Quality		JPEG FINE	JPEG NORMAL	JPEG FINE	JPEG NORMAL	JPEG FINE	JPEG NORMAL	JPEG FINE	JPEG NORMAL
SDHC memory card	4 GB	460	860	670	1230	670	1230	960	1710
	8 GB	920	1740	1350	2480	1350	2480	1940	3440

Number of images

Modes		Still image (RAW)
SDHC memory card	4 GB	160
	8 GB	330

Recording time

Modes		Movie*4
Number of recorded pixels		Movie recording time
Quality		FULL HD (1920 x 1080)*5	HD (1280 x 720)*5
SDHC memory card	4 GB	38min.	54min.
	8 GB	1hr. 16min.	1hr. 49min.
